    SME Series – Linear Bearing

    Our standard aluminium slide units with metric dimension, have different series that can widely used in Asia, European and other countries.They have simple installation with screws, good interchangeability, high precision and rigidity, low friction, easy of replacement.

    Sliding unit is special designed to convenient the assembly of linear bearing, greatly reduce the mechanical designer’s job. It consists of one standard type linear bearing and the aluminium housing, with pre-drilled mounting holes. We use premium grade raw material to make sure our quality at affordable rates, this ideal transmission component for linear motion movement, can be widely used in CNC machines, factory automation, industrial machines, etc. There is wide size range for option, models including (special size has to be customized).

    Quote Now

      [email protected]

      Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

      Download Catalog

        [email protected]

        Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

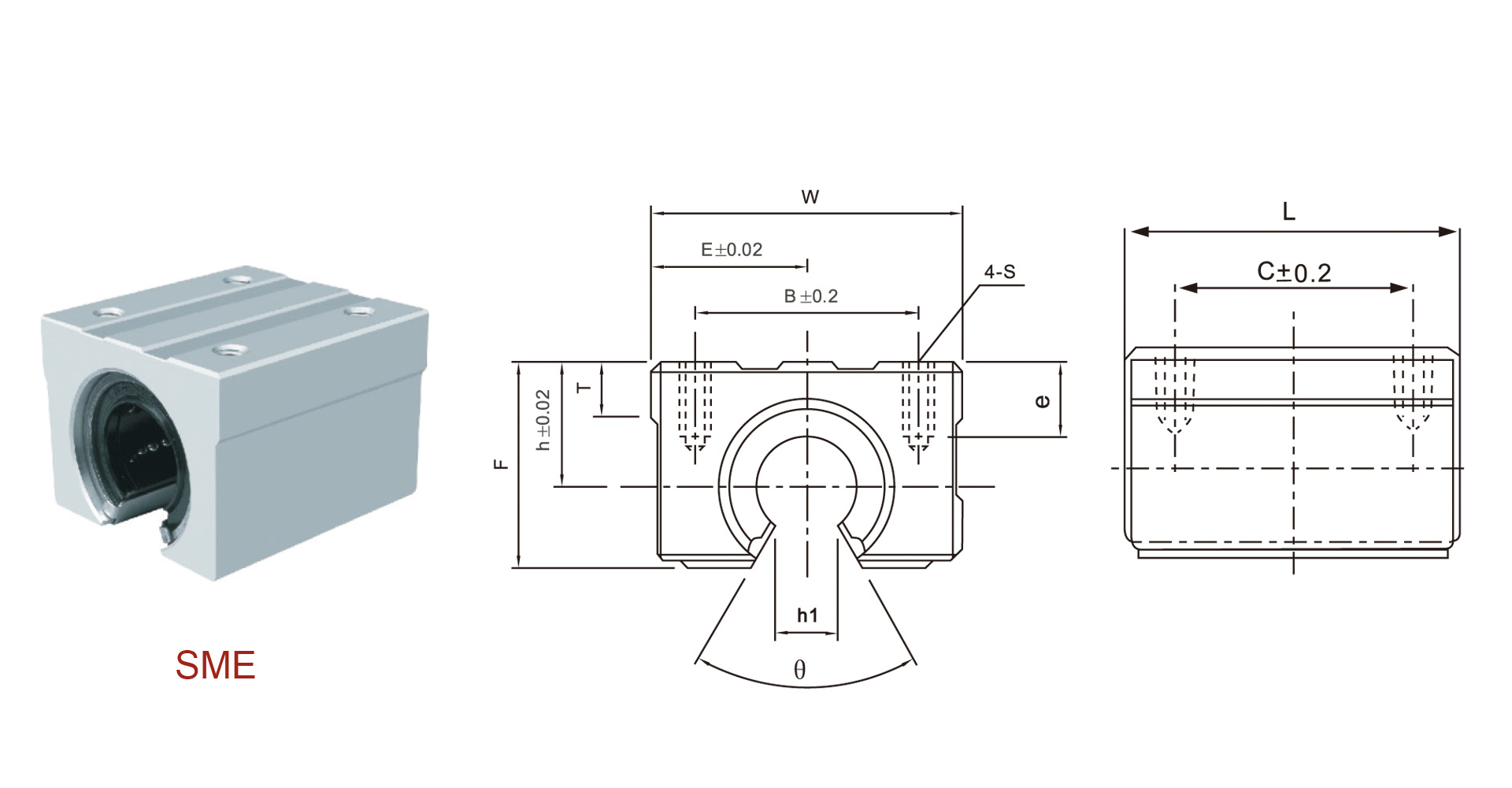

        Data Sheet of Linear Bearings SME Series

        Part No. Main Dimensions (mm) Slide Bush Basic Load Rating

        C N   /   CoN

        		 Weight (g)
        h D W L F T hl θ B C Sxe
        SME16UU 20 22.5 45 45 33 9 10 80° 32 30 M5x12 LM16UU-OP 774 1180 150
        SME20UU 23 24 48 50 39 11 10 60° 35 35 M6x12 LM20UU-OP 882 1370 200
        SME25UU 27 30 60 65 47 14 11.5 50° 40 40 M6x12 LM25UU-OP 980 1570 450
        SME30UU 33 35 70 70 56 15 14 50° 50 50 M8x18 LM30UU-OP 1570 2740 630
        SME35UU 37 40 80 80 63 18 16 50° 55 55 M8x18 LM35UU-OP 1670 3140 925
        SME40UU 42 45 90 90 72 20 19 50° 65 65 M10x20 LM40UU-OP 2160 4020 1330
        SME50UU 53 60 120 110 92 25 23 50° 94 80 M10x20 LM50UU-OP 3820 7940 3000

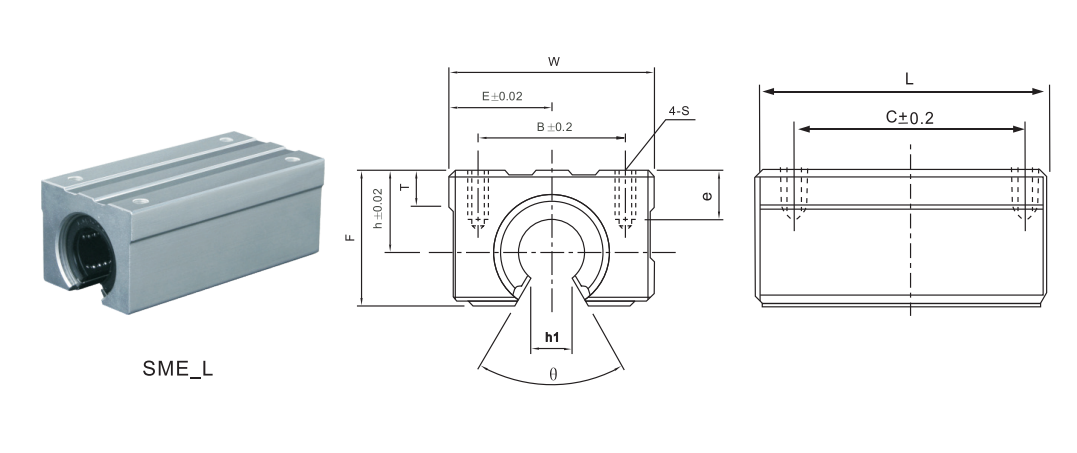

        Data Sheet of Linear Bearings SME_L Series

        Part No. Main Dimensions (mm) Slide Bush Basic Load Rating

        C N   /   CoN

        		 Weight (g)
        h D W L F T hl θ B C Sxe
        SME16LUU 20 22.5 45 85 33 9 10 80° 32 60 M5x12 LM16UU-OP×2 1230 2350 300
        SME20LUU 23 24 48 95 39 11 10 60° 35 70 M6x12 LM20UU-OP×2 1400 2740 400
        SME25LUU 27 30 60 130 47 14 11.5 50° 40 90 M6x12 LM25UU-OP×2 1560 3140 900
        SME30LUU 33 35 70 140 56 15 14 50° 50 100 M8x18 LM30UU-OP×2 2490 5490 1260

        A: We pay great attention with the quality of our products and we have many quality certificates: ISO9001, ISO14001, CE European Union certification certificate, ROHS certificate etc.

        A: Yes, sample is available. If you are interested, you can contact us by e-mail ([email protected]) to get more photos and information.

        A: Normal order delivery of linear motion products is generally controlled within 1-2 months.
        Normal order delivery for linear unit and higher precision products is generally controlled within 7-15 working days.

        A: Our cooperating transportation companies include DHL, TNT, UPS, etc. Sea transportation, air transportation and express delivery are all available. If you have a specific carrier, please let us know when you place the order.

        A: You can contact us by e-mail ([email protected] ) and we will recommend the most suitable project according to your requirements.

        A: T/T in advance.

        A: SHAC agent in Asia: Singapore, Japan, India
        SHAC agent in Europe: Hungary, Turkey, Israel
        SHAC agent in South America: Brazil

        A: SHAC do quite well in Europe, Asia and South America, also China is a potential market for us. Now SHAC’s distributors have covered more than 32 country and regions.

        A: We are really looking forward to having you as a solid partner of SHAC. Please contact us by e-mail ([email protected] ) , we can start talk and get to know more about each other.
