    SK Series – Linear Bearing

    Linear Bearing

    SK Series – Linear Bearing

    SK Series

    Shaft support blocks are used for end or intermittent support where loads are light and slight shaft deflection is not a concern. Unlike shaft support rails, blocks do not permit longitudinal passage of open-type ball bushing bearings. Shaft support blocks enable clamping of shafts, shimming is suggested for high precision applications to eliminate the effect of variations in surface of base or manufacturing tolerances between supports.
    This support block is light weight and is suitable for use in linear motion applications, such as measuring systems, printing equipment, and CNC tools and so on.

    Quote Now

      [email protected]

      Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

      Download Catalog

        [email protected]

        Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

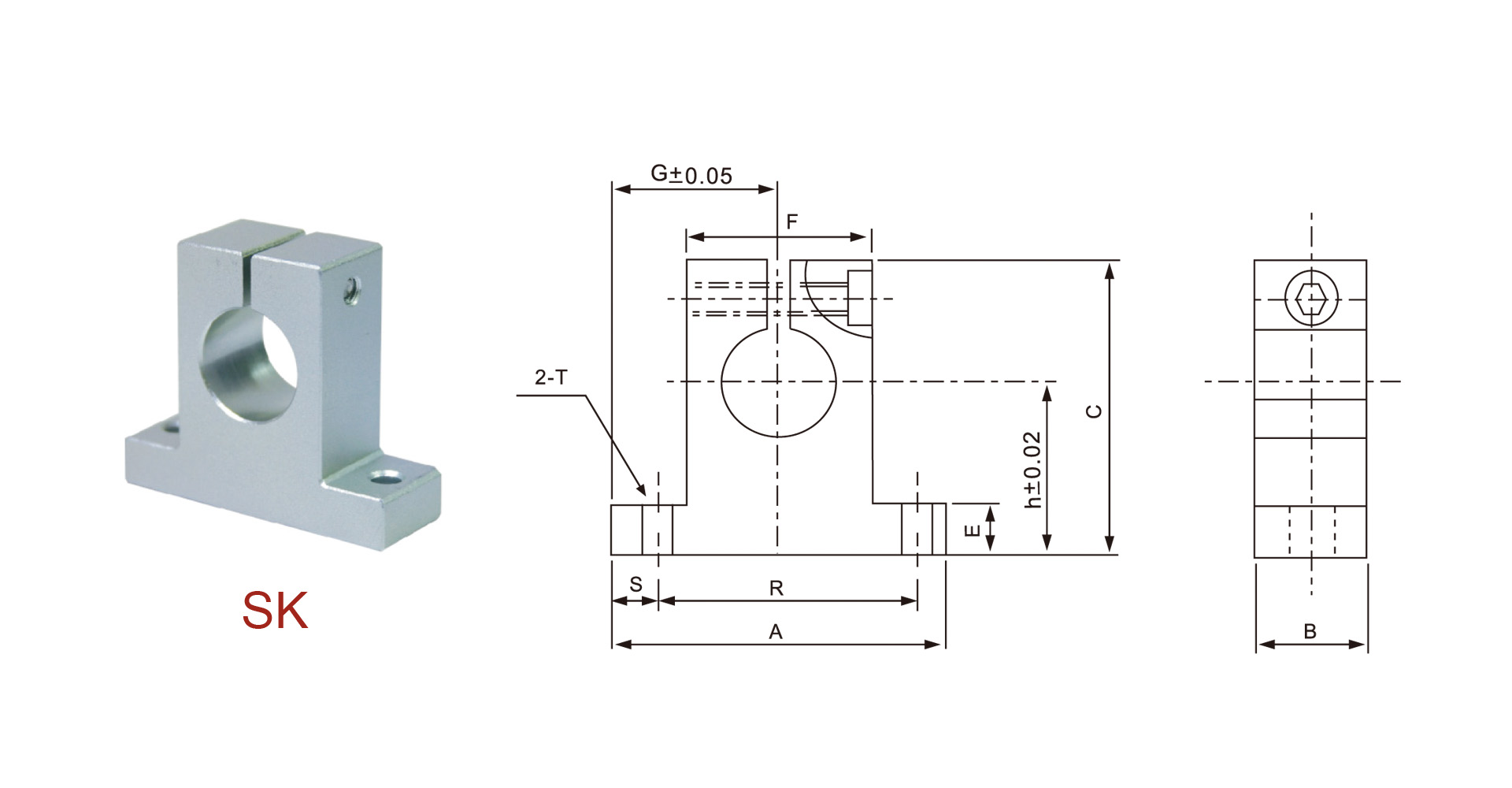

        Data Sheet of Linear Bearings SK Series

        Part No. Shaft diameter Main Dimensions (mm) Clamping bolt designation Mounting bolt designation Weight (g)
        h G A B C E F R S T
        SK-8 8 20 21 42 14 32.8 6 18 32 5 5.5 M5 M4 13
        SK-10 10 20 21 42 14 32.8 6 18 32 5 5.5 M4 M5 24
        SK-12 12 23 21 42 14 37.5 6 20 32 5 5.5 M4 M5 30
        SK-13 13 23 21 42 14 37.5 6 20 32 5 5.5 M4 M5 30
        SK-16 16 27 24 48 16 44 8 25 38 5 5.5 M4 M5 40
        SK-20 20 31 30 60 20 51 10 30 45 7.5 6.6 M5 M6 70
        SK-25 25 35 35 70 24 60 12 38 56 7 6.6 M6 M6 130
        SK-30 30 42 42 84 28 70 12 44 64 10 9 M6 M8 180
        SK-35 35 50 49 98 32 82 15 50 74 12 11 M8 M10 270
        SK-40 40 60 57 114 36 96 15 60 90 12 11 M8 M10 420
        SK-50 50 70 63 126 40 120 18 74 100 13 14 M12 M12 750

        A: We pay great attention with the quality of our products and we have many quality certificates: ISO9001, ISO14001, CE European Union certification certificate, ROHS certificate etc.

        A: Yes, sample is available. If you are interested, you can contact us by e-mail ([email protected]) to get more photos and information.

        A: Normal order delivery of linear motion products is generally controlled within 1-2 months.
        Normal order delivery for linear unit and higher precision products is generally controlled within 7-15 working days.

        A: Our cooperating transportation companies include DHL, TNT, UPS, etc. Sea transportation, air transportation and express delivery are all available. If you have a specific carrier, please let us know when you place the order.

        A: You can contact us by e-mail ([email protected] ) and we will recommend the most suitable project according to your requirements.

        A: T/T in advance.

        A: SHAC agent in Asia: Singapore, Japan, India
        SHAC agent in Europe: Hungary, Turkey, Israel
        SHAC agent in South America: Brazil

        A: SHAC do quite well in Europe, Asia and South America, also China is a potential market for us. Now SHAC’s distributors have covered more than 32 country and regions.

        A: We are really looking forward to having you as a solid partner of SHAC. Please contact us by e-mail ([email protected] ) , we can start talk and get to know more about each other.
