LMF/K/HP_L Series – Linear Bearing

Linear Bearing

LMF/K/HP_L Series – Linear Bearing

LMF/K/HP_L Series

Linear bearings are bearing elements for translation type motion. As in the case of rotary bearings, a distinction is drawn as to whether the forces occurring are transmitted by means of rolling or sliding elements. Each linear design has particular characteristics that make it especially suitable for particular bearing arrangements.

1. enable high precision linear motion on round shafts
2. sustain heavy loads with low noise and high stiffness
3. perform under almost any environmental conditions and load capacities to satisfy a wide range applications

Linear bearings are widely used in electronic equipment, pull tester and the digital three-dimensional coordinate measuring device, such as precision equipment, as well as multi-axis machine tools, press, tool grinder, automatic gas cutting machine, printer, card sorting machine, food packaging machines and other industrial machinery sliding components.

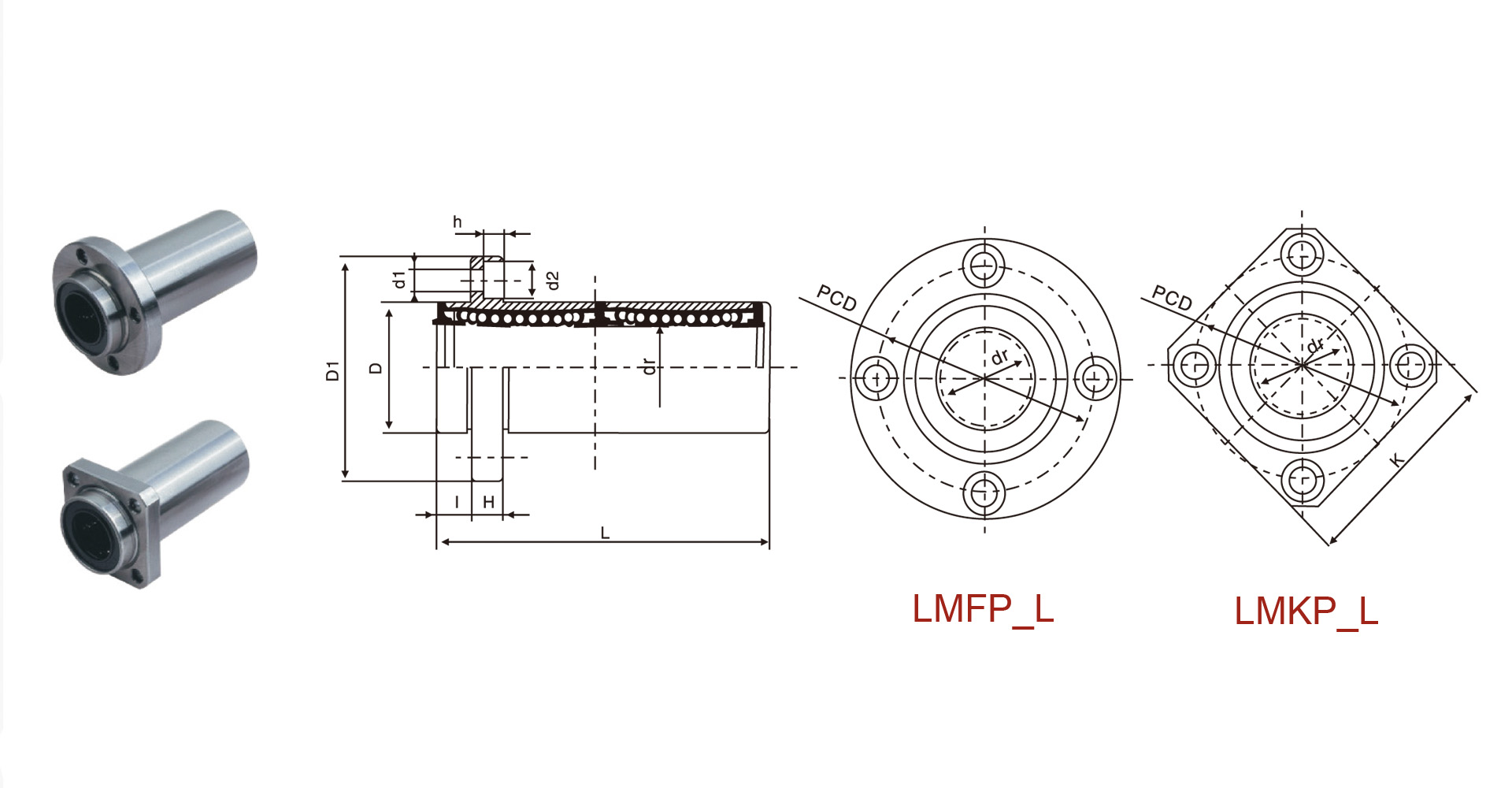

Data Sheet of Linear Bearings LMF/KP_L Series

	Part No.		Main Dimensions and Tolerance												Eccen-tricity	Basic Load Rating CN	Basic Load Rating CoN	Weight (g)
	Seal Type	Ball Circuit	dr (mm)	Tolerance (μm)	D (mm)	Tolerance (μm)	L (mm)	Tolerance (μm)	I (mm)	D1 (mm)	K (mm)	H (mm)	PCD (mm)	d1xd2xh (mm)	Eccen-tricity	Basic Load Rating CN	Basic Load Rating CoN	Weight (g)
	LMFP6LUU	LMKP6LUU	4	6	0 -10	12	0 -13	35	±300	5	28	22	5	20	3.5x6x3.1	15	323	529	31
	LMFP8LUU	LMKP8LUU	4	8		15	0 -13	45	±300	5	32	25	5	24	3.5x6x3.1		431	784	51
☆	LMFP10LUU	☆LMKP10LUU	4	10		19	0 -16	55		6	40	30	6	29	4.5×7.5×4.1		588	1100	98
	LMFP12LUU	☆LMKP12LUU	4	12		21		57	-200	6	42	32	6	32	4.5×7.5×4.1		813	1570	110
	LMFP13LUU	LMKP13LUU	4	13		23		61	-200	6	43	34	6	33	4.5×7.5×4.1		813	1570	130
☆	LMFP16LUU	☆LMKP16LUU	5	16		28		70		6	48	37	6	38	4.5×7.5×4.1		1230	2350	190
☆	LMFP20LUU	☆LMKP20LUU	5	20	0 -12	32	0 -19	80		8	54	42	8	43	5.5x9x5.1	20	1400	2740	260
☆	LMFP25LUU	☆LMKP25LUU	6	25		40		112	-300	8	62	50	8	51	5.5x9x5.1		1560	3140	540
☆	LMFP30LUU	☆LMKP30LUU	6	30		45		123		10	74	58	10	60	6.6x11x6.1		2490	5490	680
	LMFP35LUU	LMKP35LUU	6	35	0 -15	52	0 -22	135		10	82	64	10	67	6.6x11x6.1	25	2650	6270	1020
☆	LMFP40LUU	☆LMKP40LUU	6	40		60		151		13	96	75	13	78	9x14x8.1		3430	8040	1570
	LMFP50LUU	LMKP50LUU	6	50		80		192		13	116	92	13	98	9x14x8.1		6080	15900	3600
	LMFP60LUU	LMKP60LUU	6	60	0 -20	90	0 -25	209	-400	18	134	106	18	112	11×17.5×10.8		7550	20000	4500
	Note : ☆ means steel retainer is available.

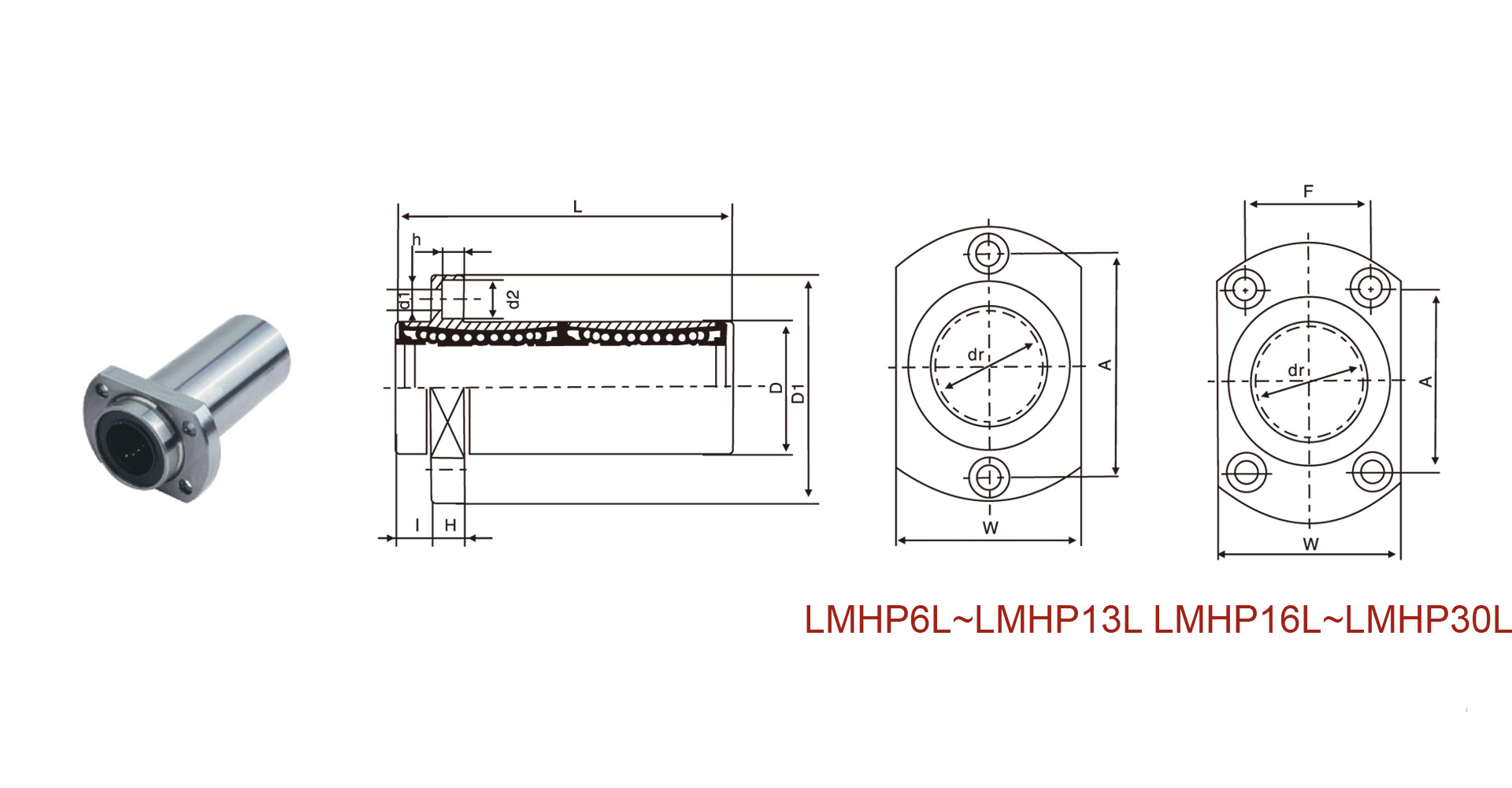

Data Sheet of Linear Bearings LMHP_L Series

	Part No.		Main Dimensions and Tolerance													Eccen-tricity	Basic Load Rating CN	Basic Load Rating CoN	Weight (g)
	Seal Type	Ball Circuit	dr (mm)	Tolerance (μm)	D (mm)	Tolerance (μm)	L ±0.3 (mm)	Tolerance (μm)	I (mm)	D1 (mm)	W(mm)	H (mm)	A (mm)	F (mm)	d1xd2xh (mm)	Eccen-tricity	Basic Load Rating CN	Basic Load Rating CoN	Weight (g)
	LMHP6LUU	4	6	0 -10	12	0 -13	35	±300	5	28	18	5	20	–	3.5x6x3.1	15	323	529	28
	LMHP8LUU	4	8		15	0 -13	45	±300	5	32	21	5	24	–	3.5x6x3.1		431	784	47
☆	LMHP10LUU	4	10		19	0 -16	55	-200	6	40	25	6	29	–	4.5×7.5×4.1		588	1100	90
☆	LMHP12LUU	4	12		21		58		6	42	27	6	32	–	4.5×7.5×4.1		813	1570	102
☆	LMHP13LUU	4	13		23		61		6	43	29	6	33	–	4.5×7.5×4.1		813	1570	123
☆	LMHP16LUU	5	16		28		70	-300	6	48	34	6	31	22	4.5×7.5×4.1		1230	2350	182
☆	LMHP20LUU	5	20	0 -12	32	0 -19	80		8	54	38	8	36	24	5.5x9x5.1	20	1400	2740	247
☆	LMHP25LUU	6	25		40		112		8	62	46	8	40	32	5.5x9x5.1		1560	3140	525
☆	LMHP30LUU	6	30		45		123		10	74	51	10	49	35	6.6x11x6.1		2490	5490	645
