Overview:

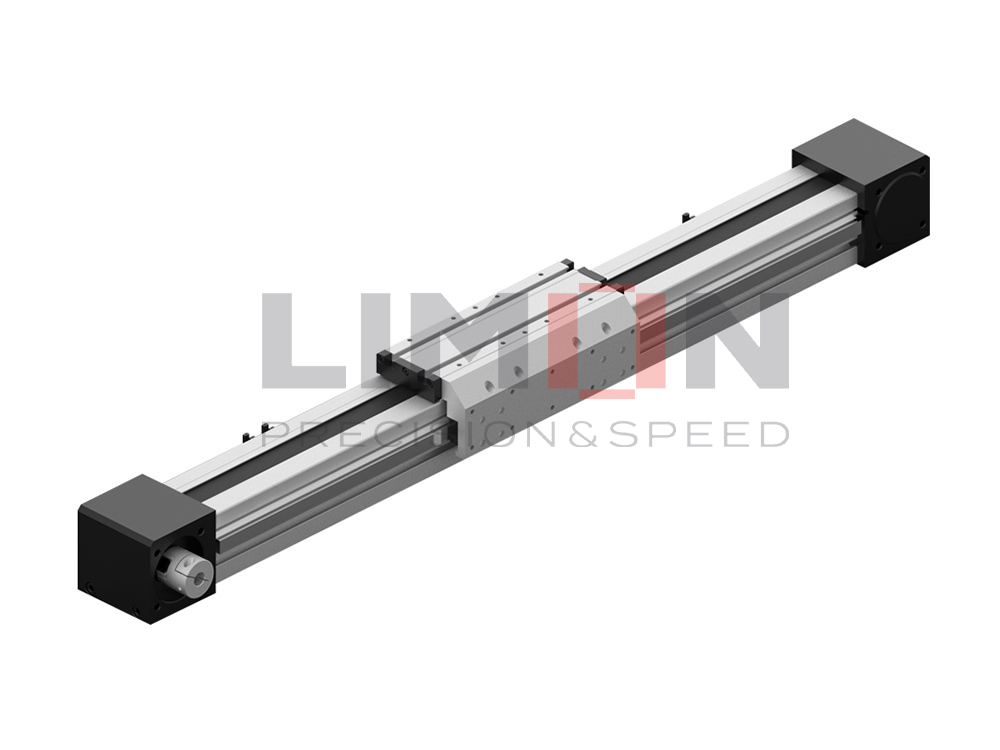

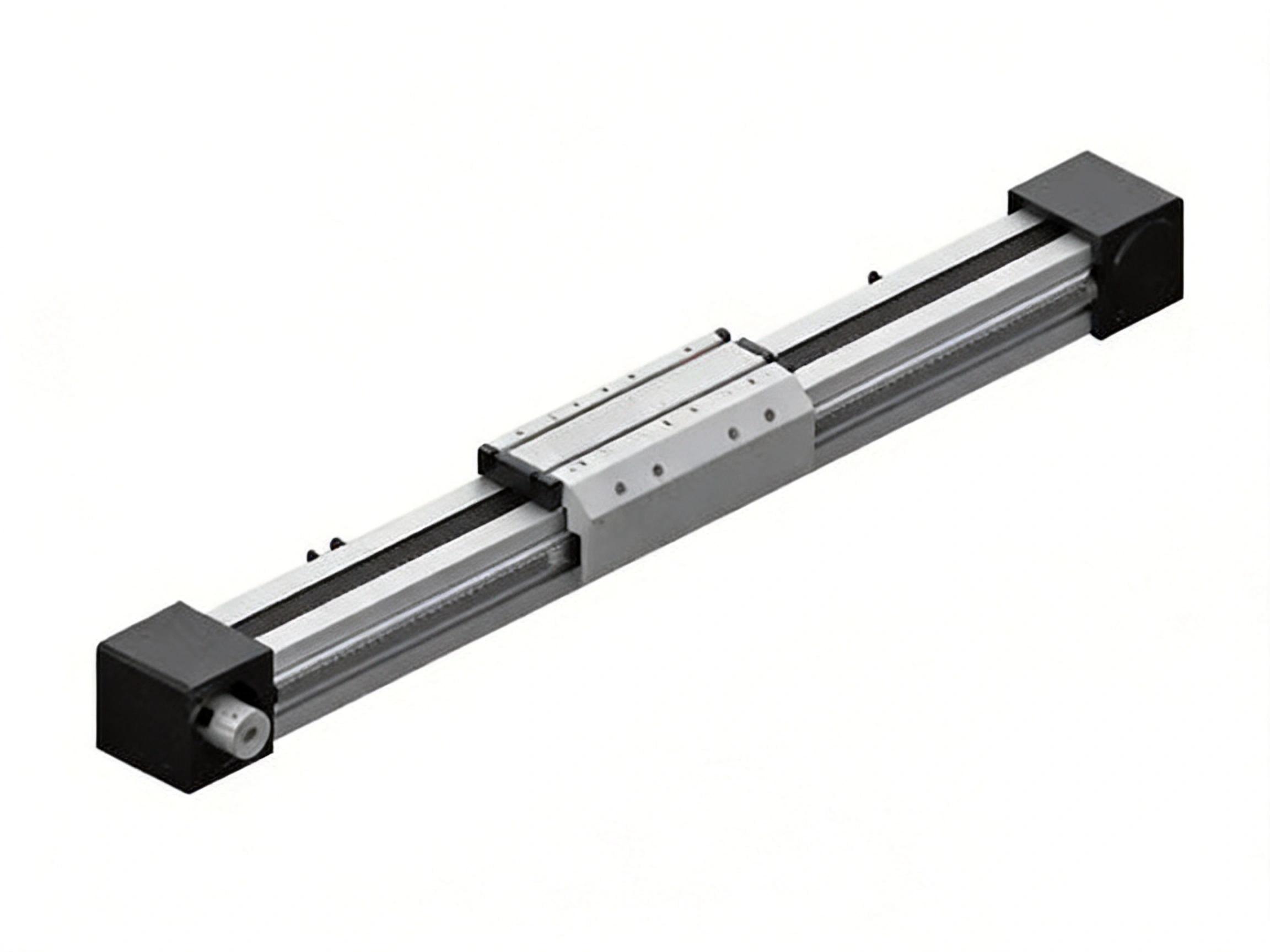

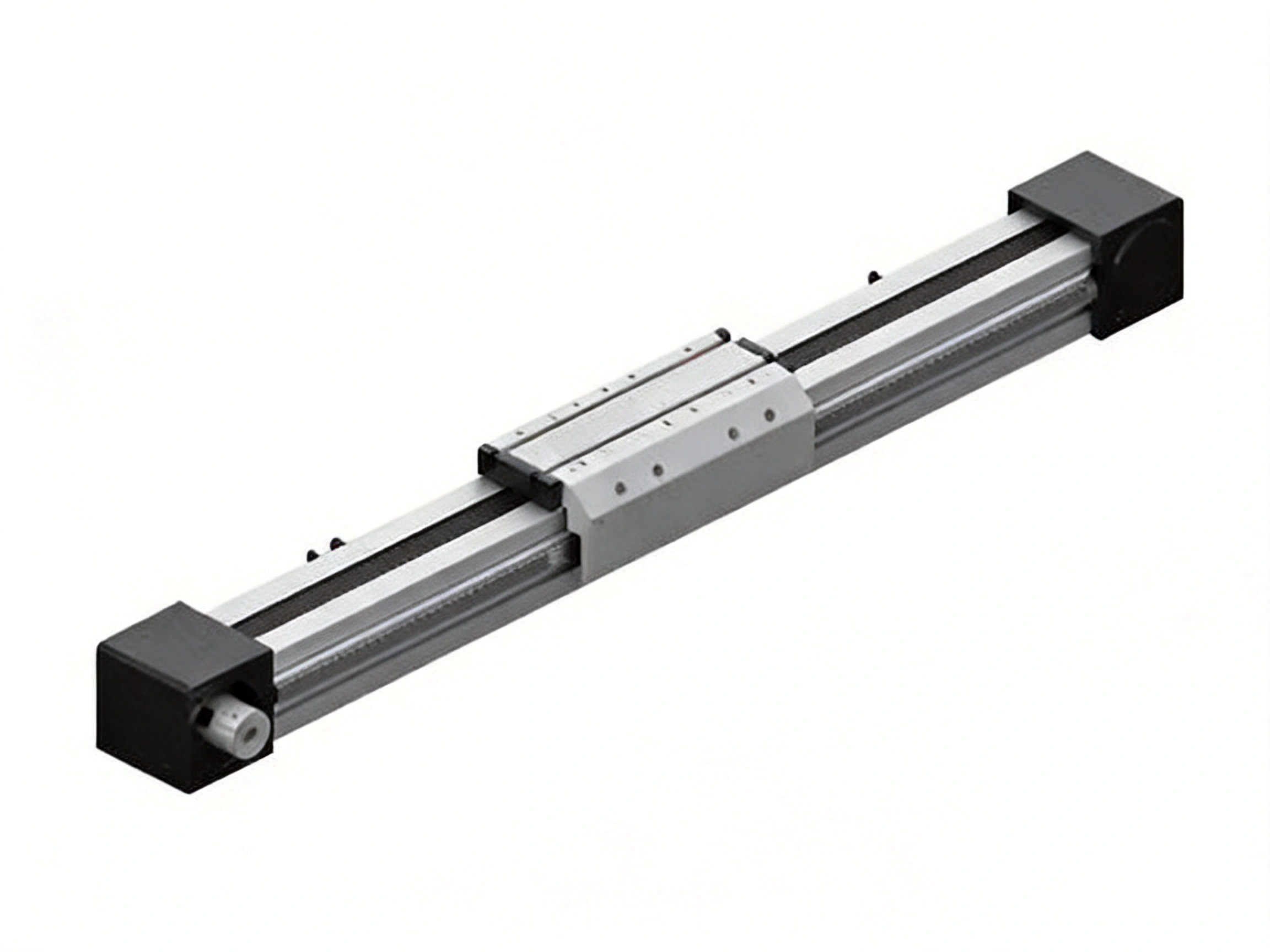

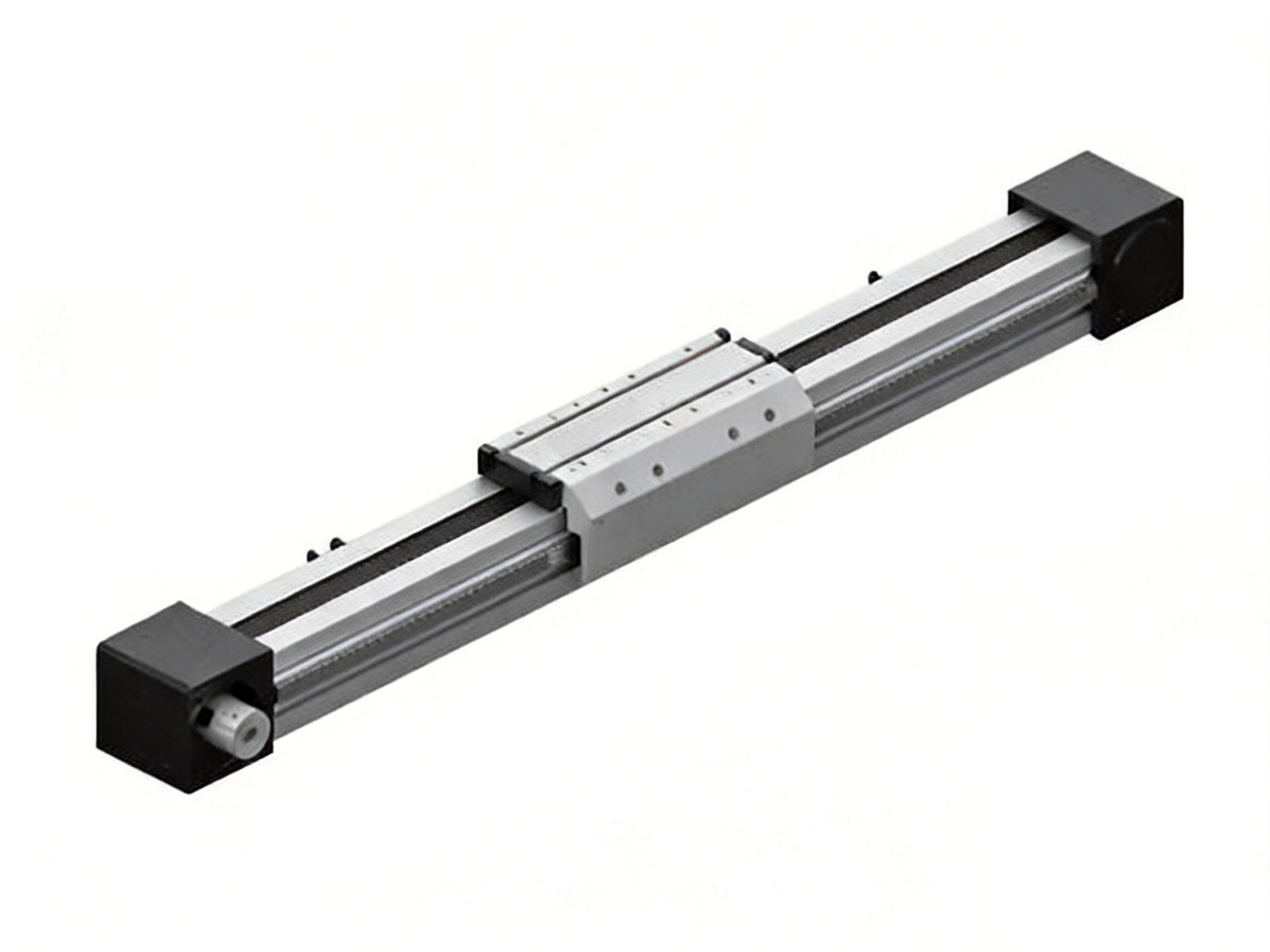

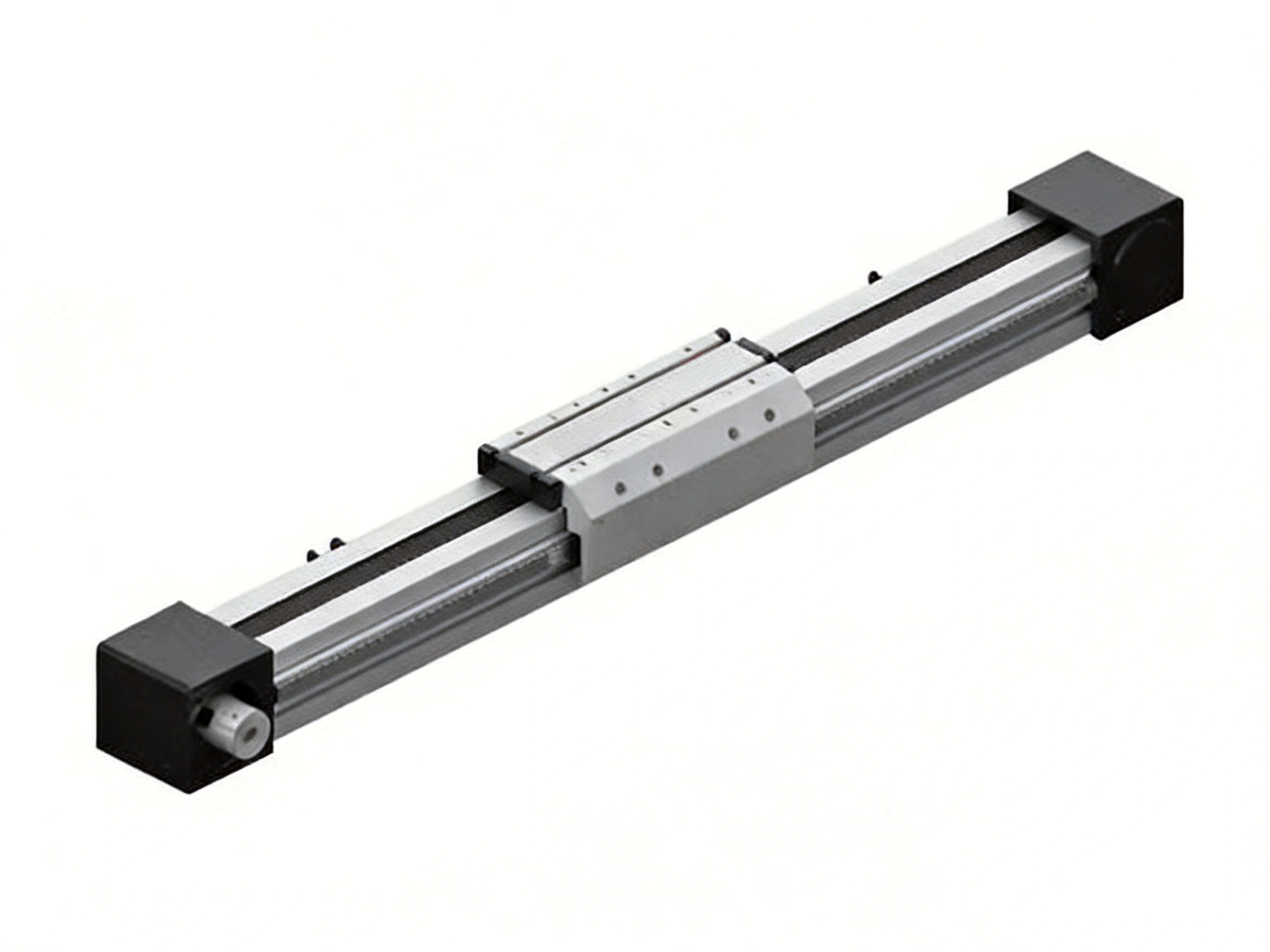

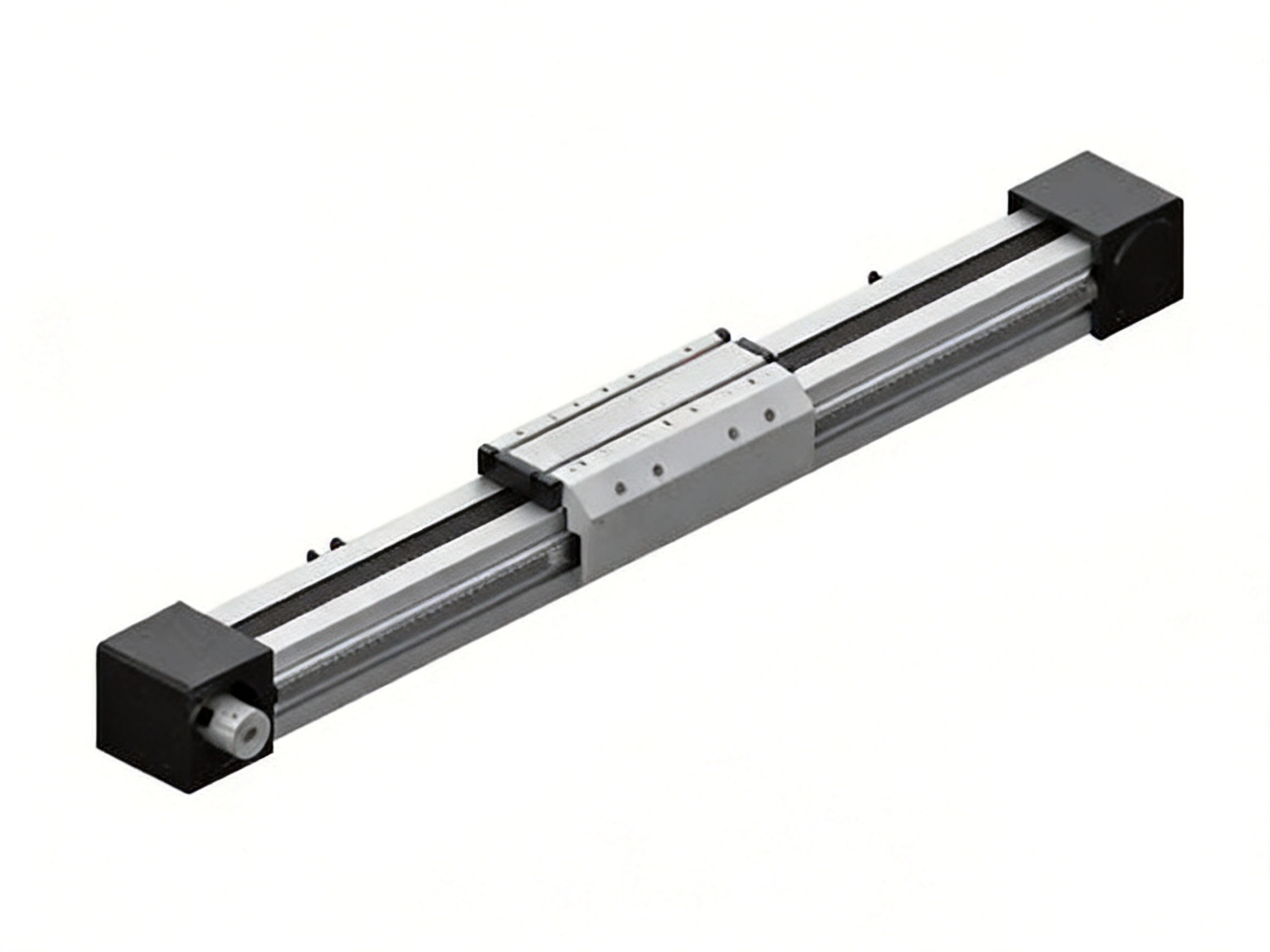

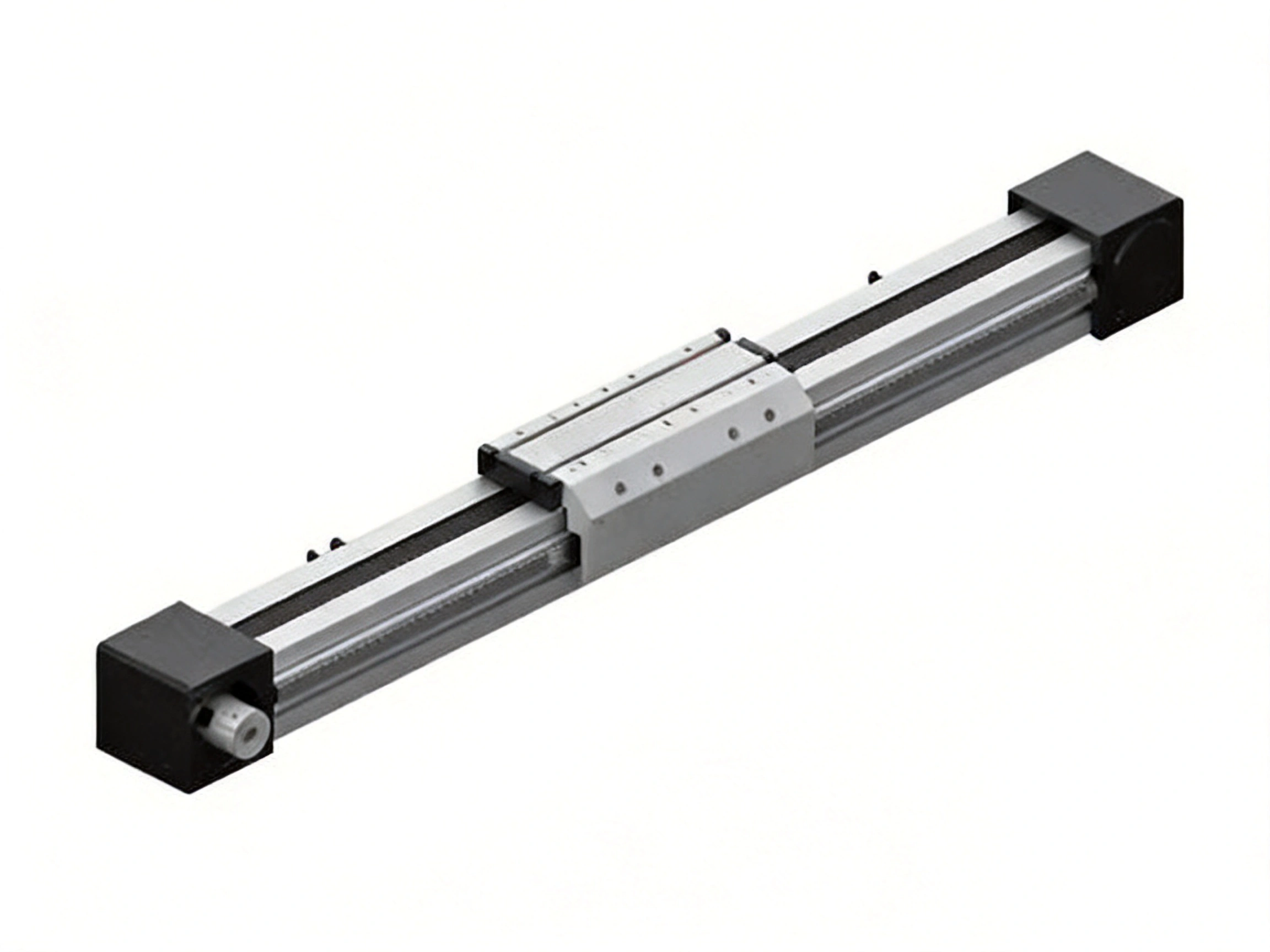

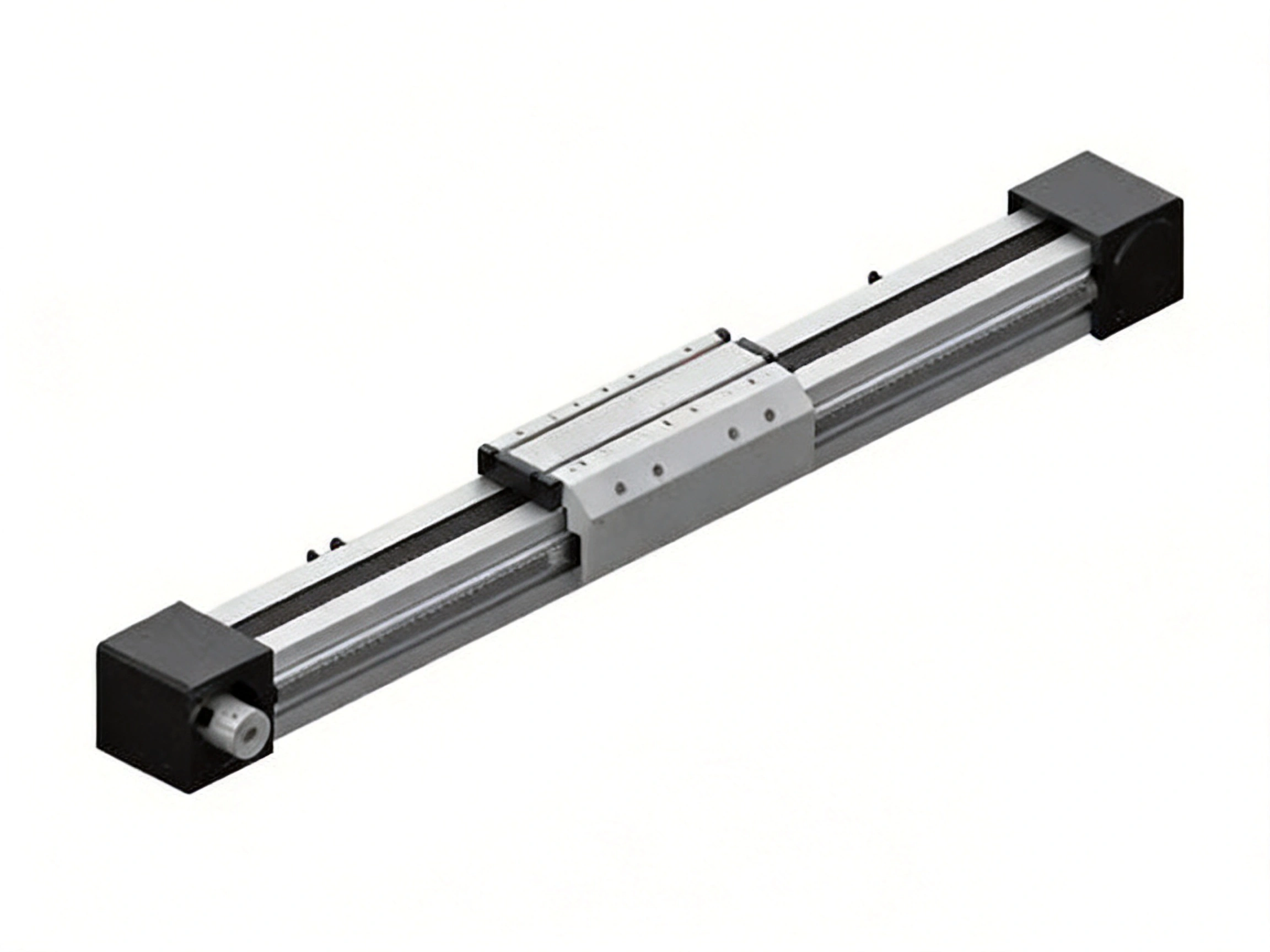

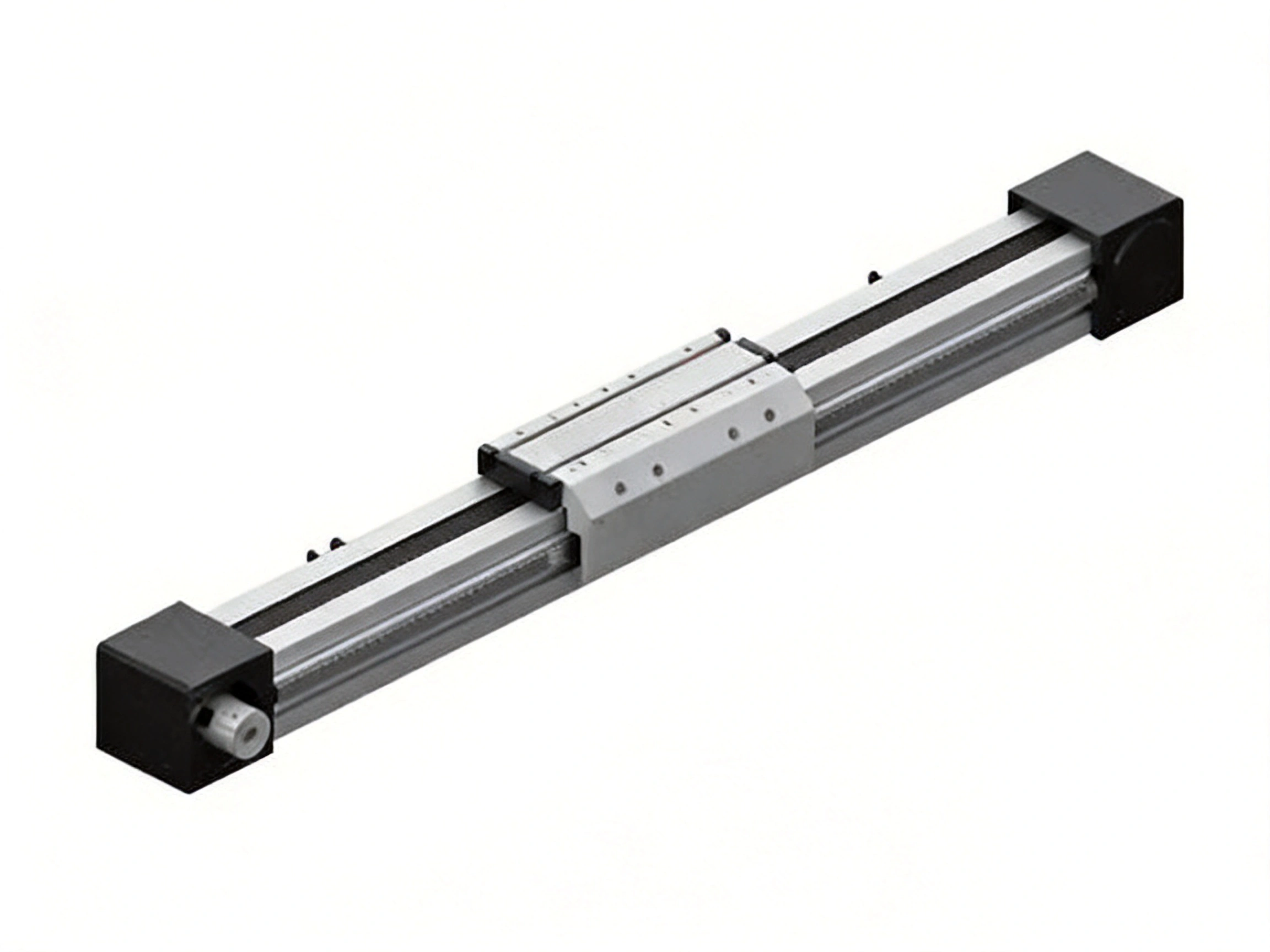

HTO series modules are belt-driven linear actuators, designed based on the preferences of the European market, featuring a square profile design, specifically designed for applications with significant lateral eccentricity.

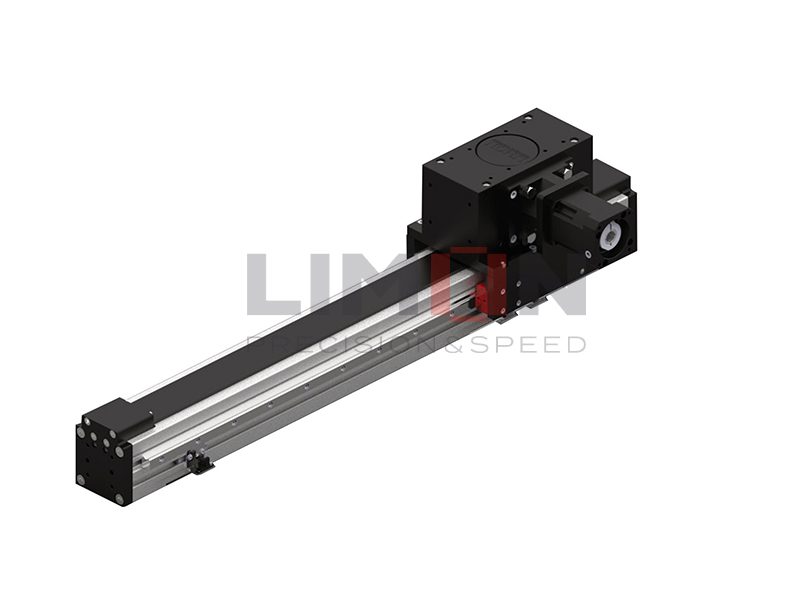

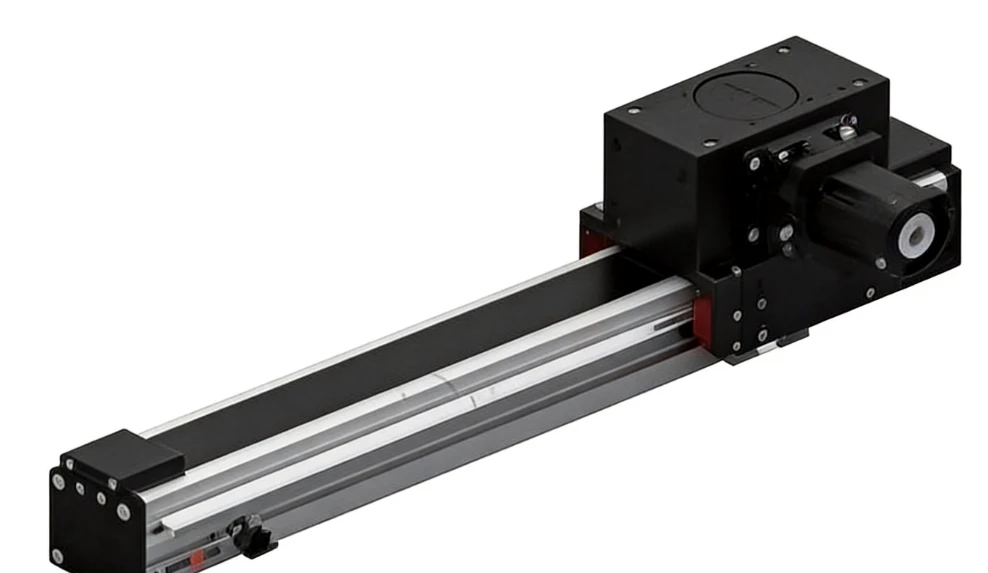

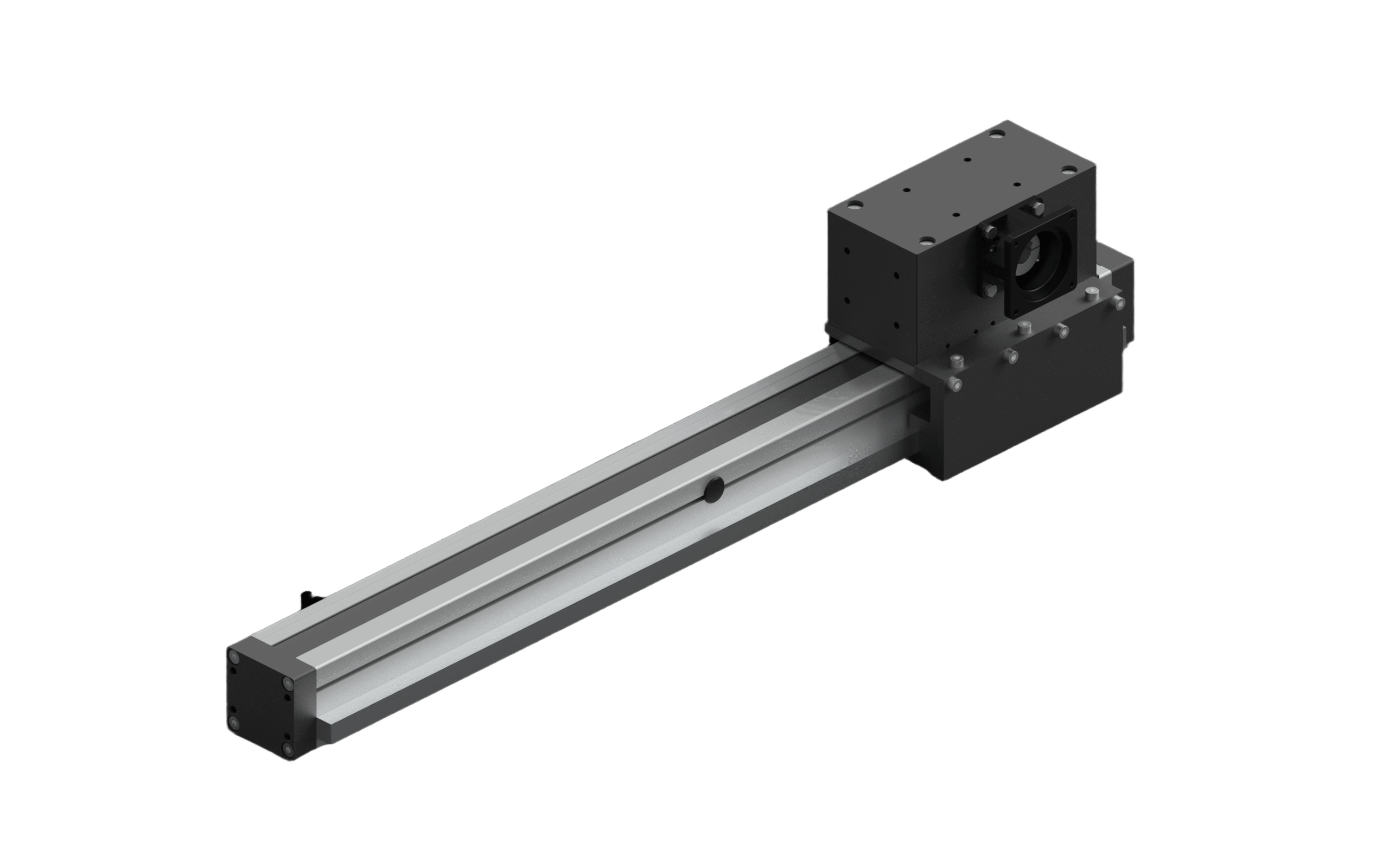

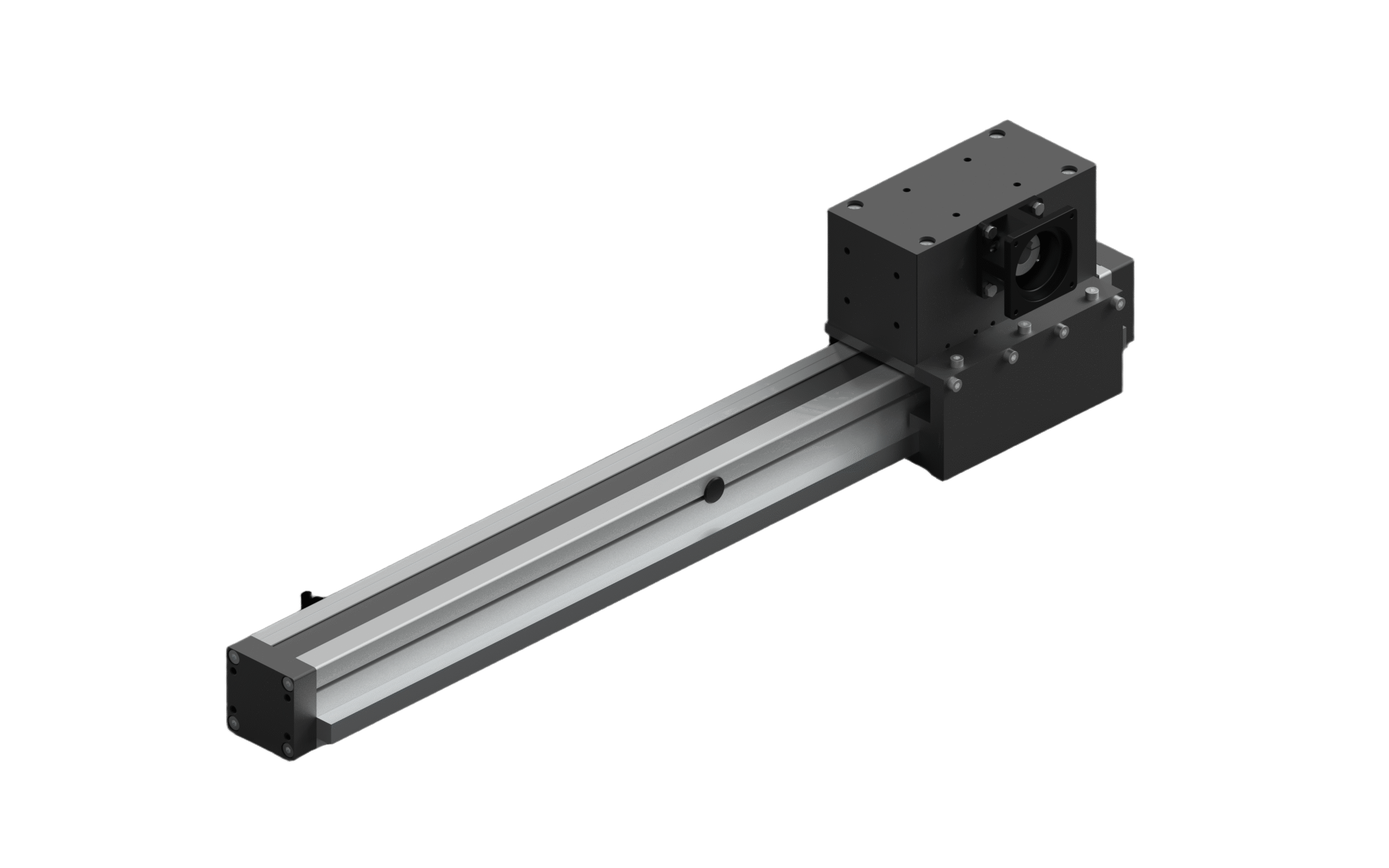

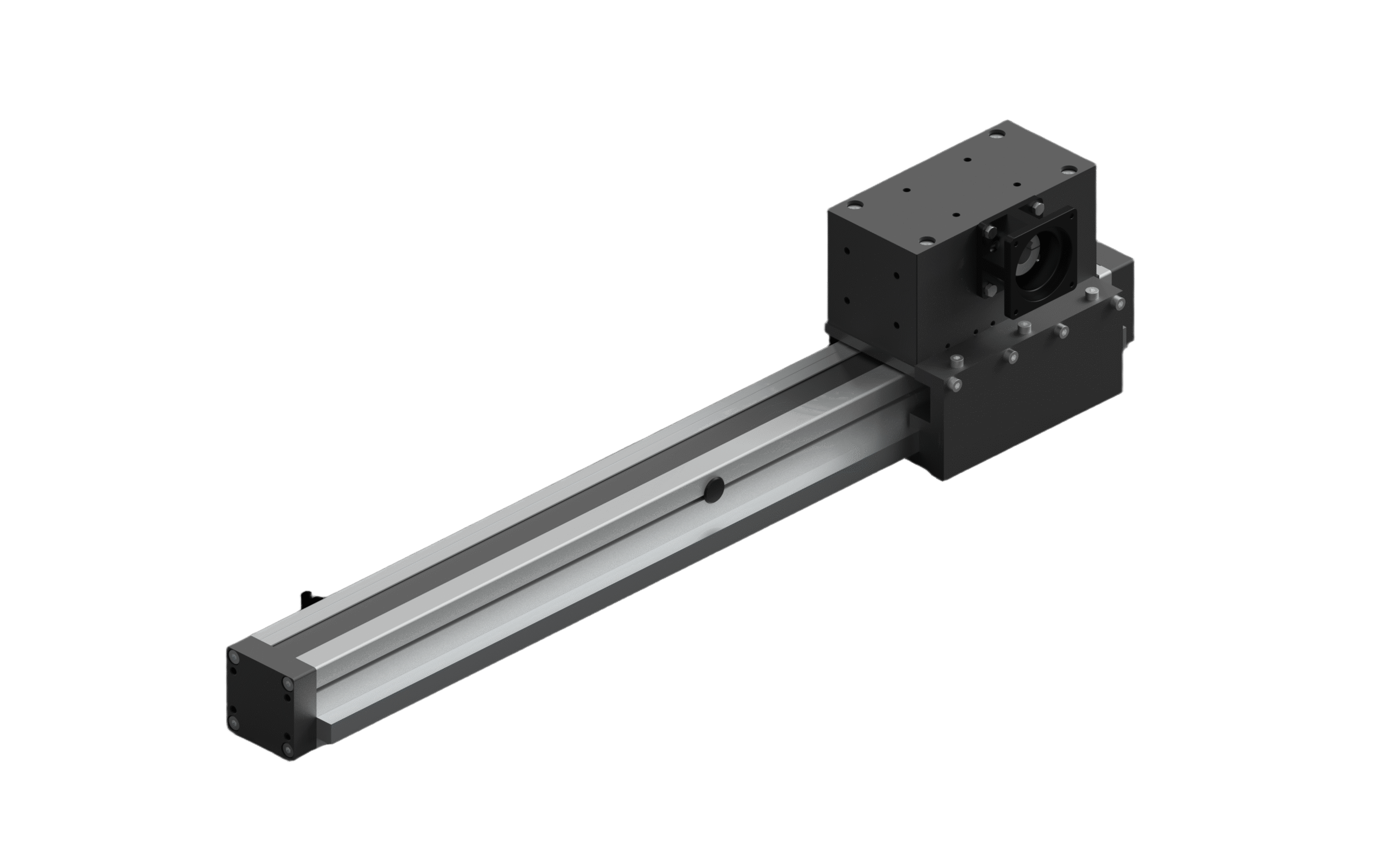

HTZ series modules are belt-driven linear actuators, designed based on the preferences of the European market, featuring a square profile design, specifically designed for applications with significant lateral eccentricity and for Z axis use.

Basic info:

Drive Type: Belt driven type, open type

Stroke:
HTO series: 4000mm (standard), I80/100 can be joint to a longer stroke. (Unlimited)
HTZ series: max 1500mm

Characteristics:

Higher torsional stiffness

• An additional guide rail is placed to the side of the profile, which is connected to the main carriage by a aluminum plate, significantly enhances the overall torsional resistance of the module, suitable for unsupporting applications

Flexible Motor Collocation

• The integrated structure for pulley and coupling could enhance concentricity and prevents slippage, reduce the motor’s transverse installation length to save space on the machine.
• Reduce the motor’s transverse installation length to save space on the machine.
• The motor mount can be put on the module in any direction and changed according to customer’s different requirement.

Splicable Profile

• For a larger range of application possibilities, profles can be spliced up to 12 meters in length.

Integrated Oil Injection Hole

• By using an external integrated oil injection hole design,all linear blocks can be lubricated at once without the need for disassembly maintenance.



Profile with Bracket Design

• Impossible of being pressed down,the timing belt creates an enclosed zone inside that effectively inhibits foreign objects from entering.
• When used for long strokes, the timing belt does not sag, preventing friction with the internal structure.
• Stop the timingbelt from fluctuiting and lessen the loudness.

HTZ series use Ω Type Timing Belt

• The timing belt has a type design that makes it especially ideal for quick, long-distance grabbing and handling because the motor and reducer donot move with the unit body.

Industry:

• Automated Production Line – Automotive assembly, electronics manufacturing, home appliance production
• Electronics & Semiconductor – Chip packaging, SMT placement, LCD inspection
• Packaging & Logistics – Food packaging, parcel sorting, warehouse automation
• Medical Equipment – Diagnostic instruments, testing devices, surgical robots
• Printing & Advertising – Large-format printing, laser engraving, digital printing
• Research & Laboratory – Lab instruments, sample testing, biotechnology
• Food & Beverage – Filling machines, labeling machines, packaging lines
• New Energy Industry – Lithium battery production, solar panel assembly
