LMF/K/H_L Series – Linear Bearing

Linear Bearing

LMF/K/H_L Series – Linear Bearing

LMF/K/H_L Series

Linear bearings are bearing elements for translation type motion. As in the case of rotary bearings, a distinction is drawn as to whether the forces occurring are transmitted by means of rolling or sliding elements. Each linear design has particular characteristics that make it especially suitable for particular bearing arrangements.

1. enable high precision linear motion on round shafts
2. sustain heavy loads with low noise and high stiffness
3. perform under almost any environmental conditions and load capacities to satisfy a wide range applications

Linear bearings are widely used in electronic equipment, pull tester and the digital three-dimensional coordinate measuring device, such as precision equipment, as well as multi-axis machine tools, press, tool grinder, automatic gas cutting machine, printer, card sorting machine, food packaging machines and other industrial machinery sliding components.

Download

Data Sheet of Linear Bearings LMF/K/H_L Series

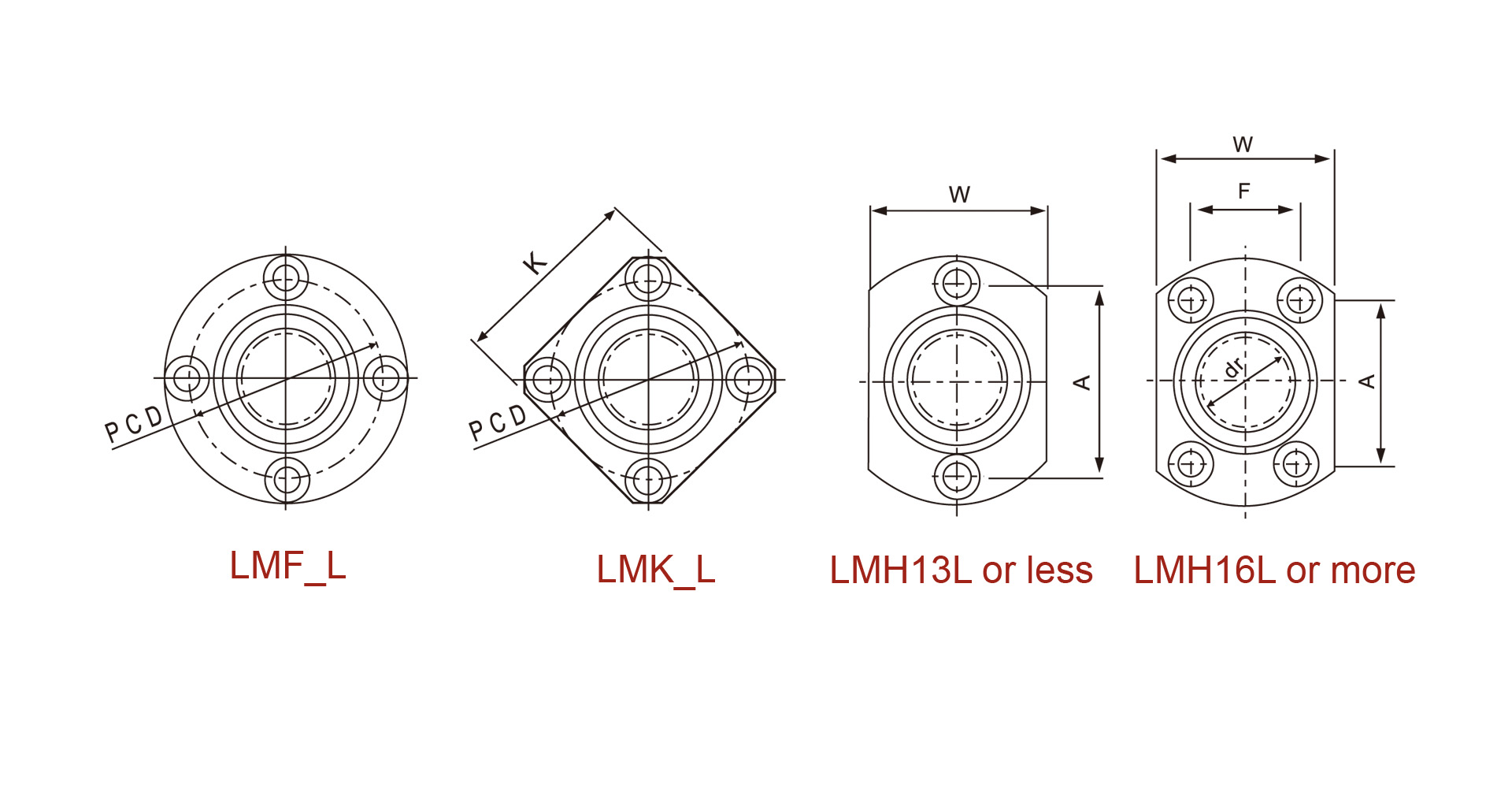

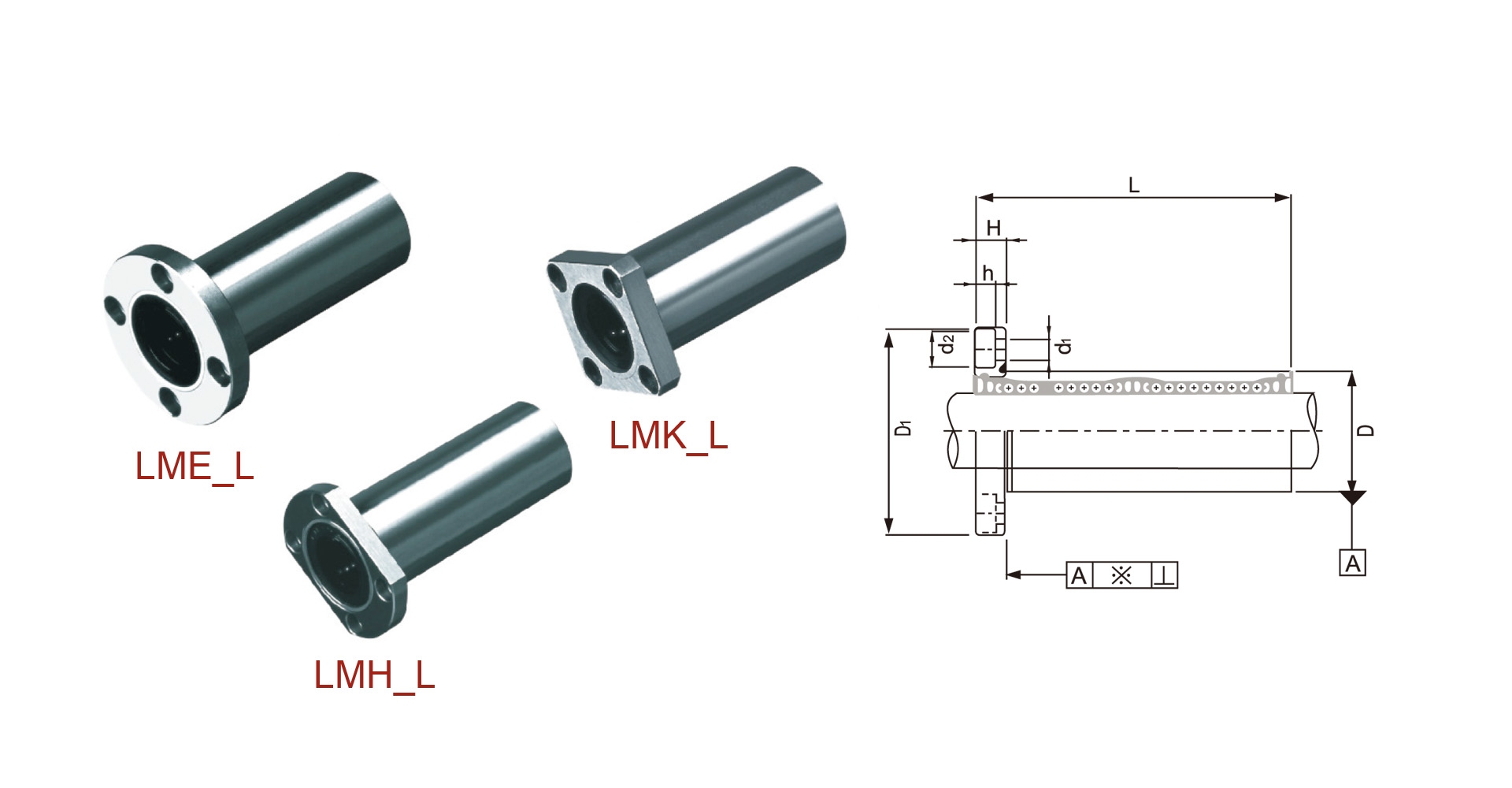

	Part No.			Main Dimensions and Tolerance
	Seal Type			Ball Circuit	dr (mm)	Tolerance (μm)	D (mm)	Tolerance (μm)	L (mm)	Tolerance (μm)	D1 (mm)	H (mm)
	LMF6LUU	LMK6LUU	LMH6LUU	4	6	0 -10	12	0 -13	35	±300 -300	28	5
	LMF8LUU	LMK8LUU	LMH8LUU	4	8		15	0 -13	45		32	5
☆	LMF10LUU	☆ LMK10LUU	☆ LMH10LUU	4	10		19	0 -16	55		40	6
☆	LMF12LUU	☆ LMK12LUU	☆ LMH12LUU	4	12		21		57		42	6
	LMF13LUU	LMK13LUU	☆ LMH13LUU	4	13		23		61		43	6
☆	LMF16LUU	☆ LMK16LUU	☆ LMH16LUU	5	16		28		70		48	6
☆	LMF20LUU	☆ LMK20LUU	☆ LMH20LUU	5	20	0 -12	32	0 -19	80		54	8
☆	LMF25LUU	☆ LMK25LUU	☆ LMH25LUU	6	25		40		112	-400	62	8
☆	LMF30LUU	☆ LMK30LUU	☆ LMH30LUU	6	30		45		123		74	10
	LMF35LUU	LMK35LUU	LMH35LUU	6	35	0 -15	52	0 -22	135		82	10
☆	LMF40LUU	LMK40LUU	–	6	40		60		151		96	13
	LMF50LUU	LMK50LUU	–	6	50		80		192		116	13
	LMF60LUU	LMK60LUU	–	6	60	0/-20	90	0/-25	209		134	18
	Note : ☆ means steel retainer is available.

Main Dimensions and Tolerance						Eccentricity (max) μm	Radial Clearance (max) μm	Basic Load Rating CN	Basic Load Rating CoN	Weight (g)
PCD (mm)	K (mm)	w (mm)	A (mm)	F (mm)	d1xd2xh (mm)	Eccentricity (max) μm	Radial Clearance (max) μm	Basic Load Rating CN	Basic Load Rating CoN	Weight (g)
20	22	18	20	–	3.5x6x3.1	15	-3	323	529	31
24	25	21	24	–	3.5x6x3.1		3	431	784	51
29	30	25	29	–	4.5×7.5×4.1		-4	588	1100	98
32	32	27	32	–	4.5×7.5×4.1		-4	813	1570	110
33	34	29	33	–	4.5×7.5×4.1		-4	813	1570	130
38	37	34	31	22	4.5×7.5×4.1		-6	1230	2350	190
43	42	38	36	24	5.5x9x5.1	20	-6	1400	2740	260
51	50	46	40	32	5.5x9x5.1		-6	1560	3140	540
60	58	51	49	35	6.6x11x6.1		-8	2490	5490	680
67	64	60	55	38	6.6x11x6.1	25	-8	2650	6270	1020
78	75	–	–	–	9x14x8.1		-10	3430	8040	1570
98	92	–	–	–	9x14x8.1		-13	6080	15900	3600
112	106	–	–	–	11x17x11.1		-13	7550	20000	4500
