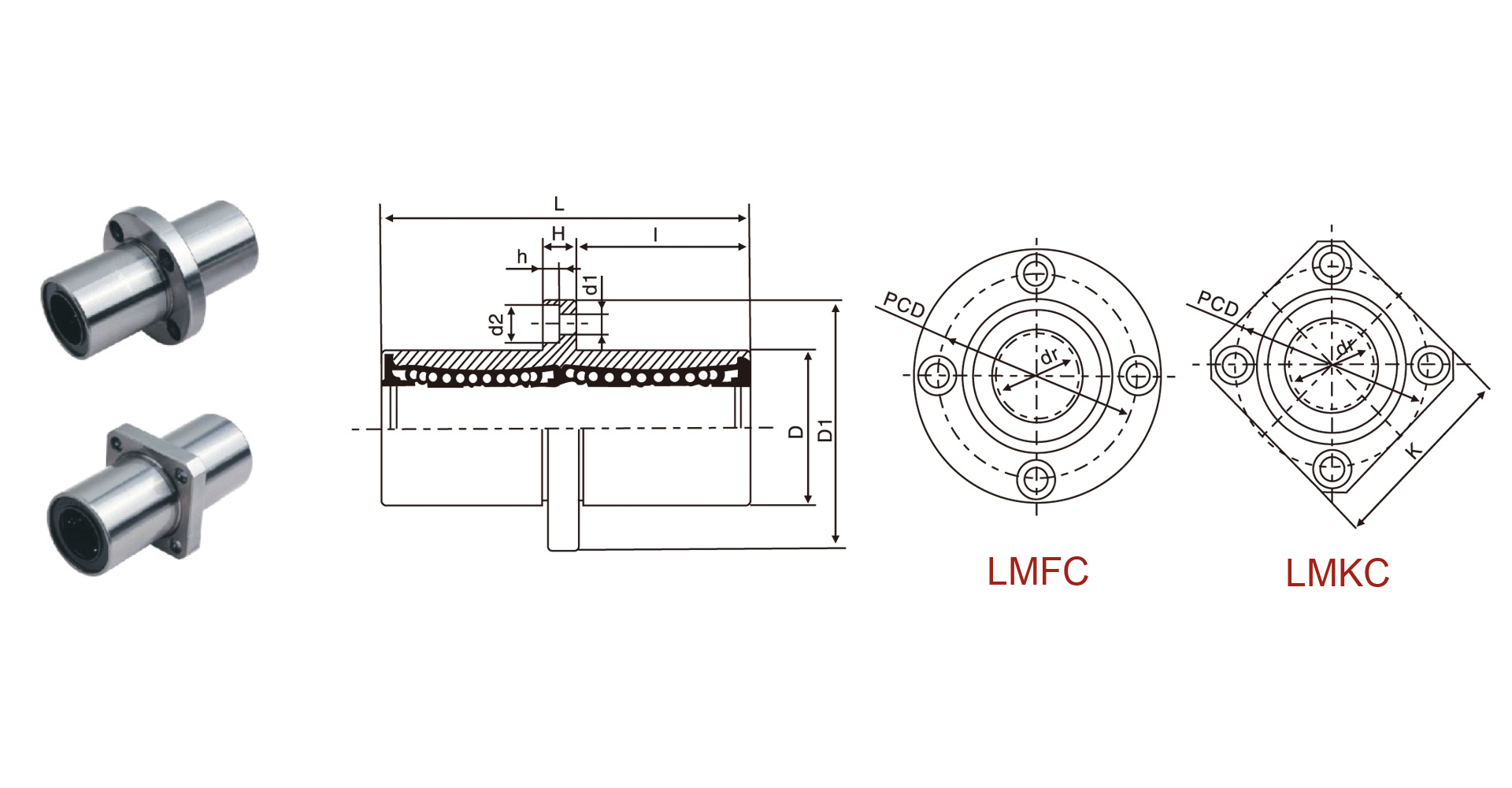

LMF/KC Series – Linear Bearing

Part No.

Main Dimensions and Tolerance

Eccen-tricity

Basic Load Rating CN

Basic Load Rating CoN

Weight (g)

Seal Type

Ball Circuit

dr (mm)

Tolerance (μm)

D (mm)

Tolerance (μm)

L (mm)

Tolerance (μm)

I (mm)

D1 (mm)

K (mm)

H (mm)

PCD (mm)

d1xd2xh (mm)

LMFC6UU

LMKC6UU

4

6

0
-10

12

0
-13

35

±300

15

28

22

5

20

3.5x6x3.1

15

323

529

31

LMFC8UU

LMKC8UU

4

8

15

45

20

32

25

5

24

3.5x6x3.1

431

784

51

☆

LMFC10UU

☆LMKC10UU

4

10

19

0-
16

55

-200

24.5

40

30

6

29

4.5×7.5×4.1

588

1100

98

☆

LMFC12UU

☆LMKC12UU

4

12

21

57

25.5

42

32

6

32

4.5×7.5×4.1

813

1570

110

LMFC13UU

LMKC13UU

4

13

23

61

27.5

43

34

6

33

4.5×7.5×4.1

813

1570

130

LMFC16UU

LMKC16UU

5

16

28

70

-300

32

48

37

6

38

4.5×7.5×4.1

1230

2350

190

☆

LMFC20UU

☆LMKC20UU

5

20

0
-12

32

0
-19

80

36

54

42

8

43

5.5x9x5.1

20

1400

2740

260

☆

LMFC25UU

☆LMKC25UU

6

25

40

112

52

62

50

8

51

5.5x9x5.1

1560

3140

540

☆

LMFC30UU

☆LMKC3OUU

6

30

45

123

56.5

74

58

10

60

6.6x11x6.1

2490

5490

680

LMFC35UU

LMKC35UU

6

35

0
-45

52

0
-22

135

62.5

82

64

10

67

6.6x11x6.1

25

2650

6270

1020

☆

LMFC40UU

☆LMKC40UU

6

40

60

151

69

96

75

13

78

9x14x8.1

3430

8040

1570

LMFC50UU

LMKC50UU

6

50

80

192

89.5

116

92

13

98

9x14x8.1

6080

15900

3600

LMFC60UU

LMKC60UU

6

60

0
-20

90

0
-25

209

-400

95.5

134

106

18

112

11x17x11.1

30

7550

20000

4500
