    SFY Ball Screw Nut

    Ball Screw Nut

    SFY Series

    Features:

    • High Reliability
    • Small friction & Smooth Operation
    • High Rigidity and Preload
    • High speed with low noise design.
    • High lead circulate design to make sure running performance.
    Quote Now

      [email protected]

      Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

      Download Catalog

        [email protected]

        Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

        Circulation type Model

        Characteristic
        Single Nut Double Nuts
        Internal Circulation type SFK SFNU SFNI SCI DFNU DFNI

        •Dedicated diameter of screw takes only little space.

        •Applicable to those with smaller lead / the outside diameter of the screw
        External Circulation type SFV XFV DFV

        •Economy

        •Applicable to larger lead and diameter.

        •Applicable for high loading purpose.
        End-caps Circulation type SFS SFY DFS

        •Suitable for high speed positioning

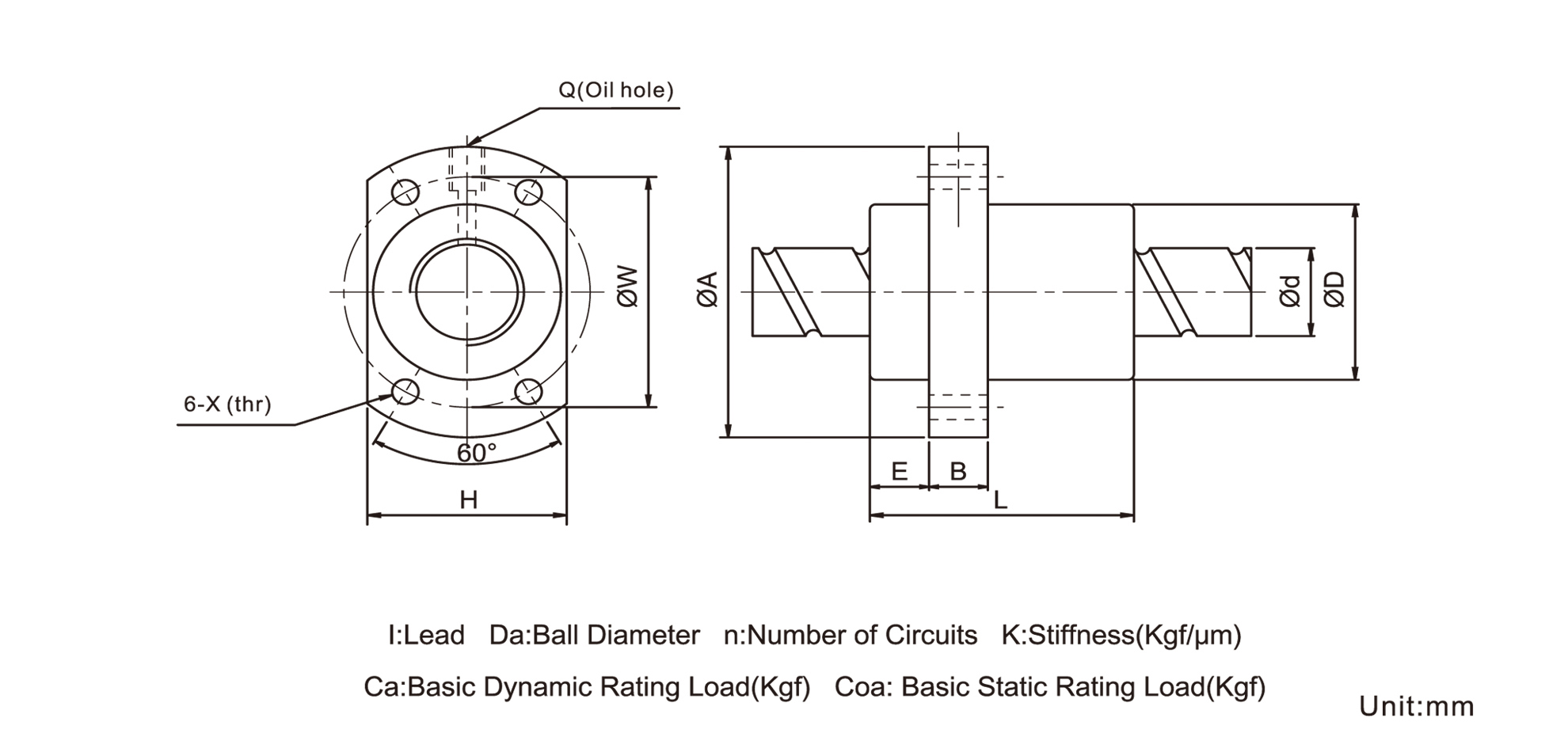

        Size Table of SFY Screws

        Model No. d l Da Dimension Load Rating
        D A E B L W H X Q n Ca(kgf) Coa(kgf)
        SFY1616-3.6 16 16 2.778 32 53 10 10 45 42 34 4.5 M6x1 1.8*2 886 1994
        SFY1632-1.6 16 32 2.778 32 53 10 10 42.5 42 34 4.5 M6x1 0.8*2 419 915
        SFY2020-3.6 20 20 3.175 39 62 13 10 52 50 41 5.5 M6x1 1.8*2 1187 2894
        SFY2040-1.6 20 40 3.175 39 62 13 10 50 50 41 5.5 M6x1 0.8*2 556 1311
        SFY2040-3.6 20 40 3.175 39 62 13 10 90 50 41 5.5 M6x1 1.8*2 1117 2949
        SFY2525-3.6 25 25 3.969 47 74 15 12 64 60 49 6.6 M6x1 1.8*2 1773 4524
        SFY2525-5.6 25 25 3.969 47 74 15 12 89 60 49 6.6 M6x1 2.8*2 2593 7038
        SFY2550-1.6 25 50 3.969 47 74 15 12 60 60 49 6.6 M6x1 0.8*2 832 2050
        SFY2550-3.6 25 50 3.969 47 74 15 12 110 60 49 6.6 M6x1 1.8*2 1671 4612
        SFY3232-3.6 32 32 4.762 58 92 17 12 78 74 60 9 M6x1 1.8*2 2508 6848
        SFY3232-5.6 32 32 4.762 58 92 17 12 110 74 60 9 M6x1 2.8*2 3667 10652
        SFY3264-1.6 32 64 4.762 58 92 17 12 71 74 60 9 M6x1 0.8*2 1172 3084
        SFY4040-3.6 40 40 6.35 73 114 19.5 15 99 93 75 11 M6x1 1.8*2 4131 11587
        SFY4040-5.6 40 40 6.35 73 114 19.5 15 139 93 75 11 M6x1 2.8*2 6040 18024
        SFY4080-1.6 40 80 6.35 73 114 19.5 15 91 93 75 11 M6x1 0.8*2 1939 5253
        SFY5050-3.6 50 50 7.938 90 135 21.5 20 117 112 92 14 M6x1 1.8*2 6185 18032
        SFY5050-5.6 50 50 7.938 90 135 21.5 20 167 112 92 14 M6x1 2.8*2 9044 28049
        SFY50100-1.6 50 100 7.938 90 135 21.5 20 111 112 92 14 M6x1 0.8*2 2803 7793
