    SC Series – Linear Bearing

    Linear Bearing

    SC Series – Linear Bearing

    SC Series

    Our standard aluminium slide units with metric dimension, have different series that can widely used in Asia, European and other countries.They have simple installation with screws, good interchangeability, high precision and rigidity, low friction, easy of replacement.

    Sliding unit is special designed to convenient the assembly of linear bearing, greatly reduce the mechanical designer’s job. It consists of one standard type linear bearing and the aluminium housing, with pre-drilled mounting holes. We use premium grade raw material to make sure our quality at affordable rates, this ideal transmission component for linear motion movement, can be widely used in CNC machines, factory automation, industrial machines, etc. There is wide size range for option, models including (special size has to be customized).

    Quote Now

      [email protected]

      Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

      Download Catalog

        [email protected]

        Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

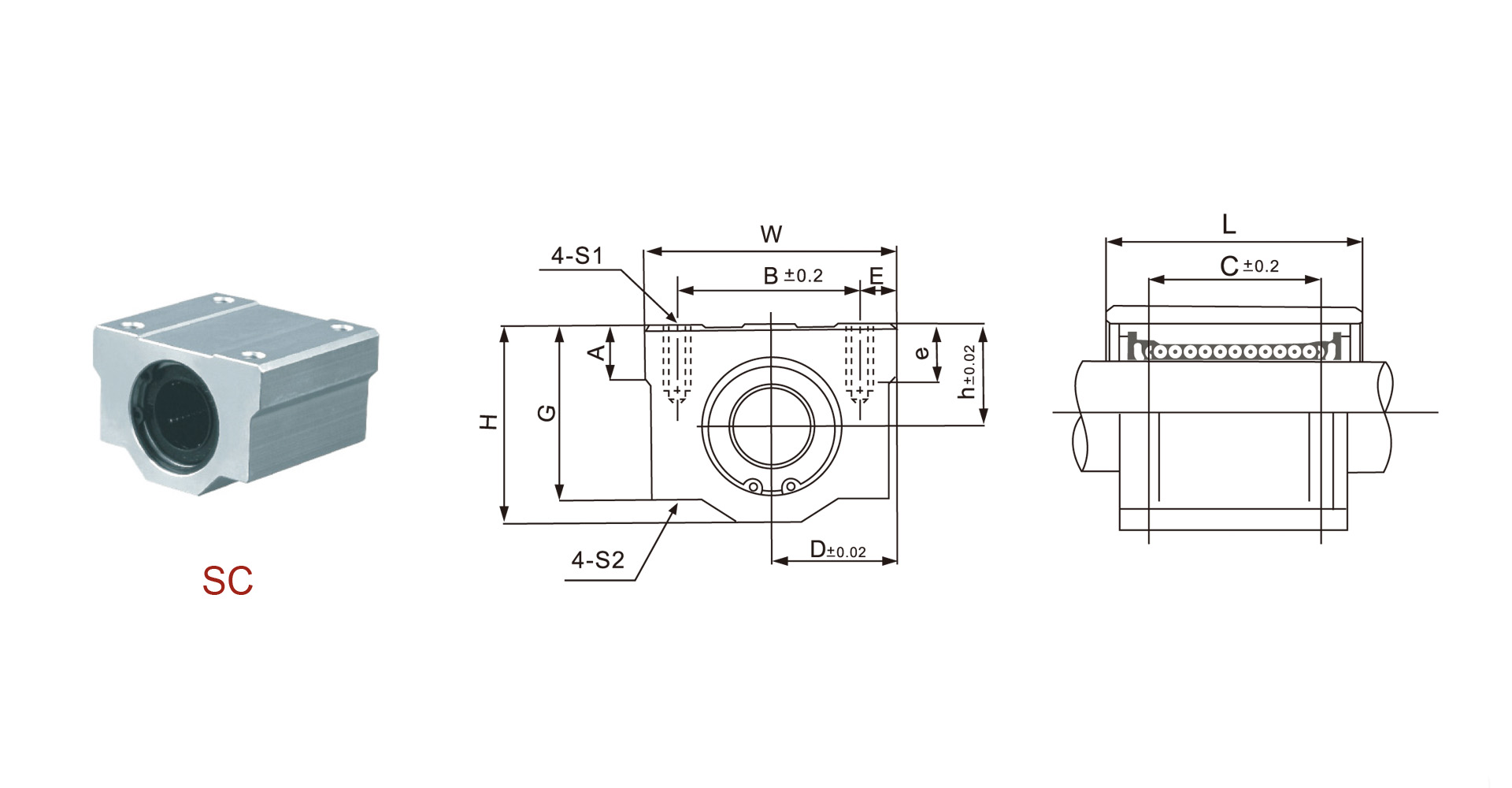

        Data Sheet of Linear Bearings SC Series

        Part No. Main Dimensions (mm) Basic Load Rating CN Basic Load Rating CoN Weight (g)
        h D W H G A B E Slxe S2 C L
        SC8UU 11 17 34 22 18 6 24 5 M4X8 3.4 18 30 274 392 52
        SC10UU 13 20 40 26 21 8 28 6 M5X12 4.3 21 35 372 549 92
        SC12UU 15 21 42 28 24 8 30.5 5.75 M5X12 4.3 26 36 510 784 102
        SC13UU 15 22 44 30 24.5 8 33 5.5 M5X12 4.3 26 39 510 784 120
        SC16UU 19 25 50 38.5 32.5 9 36 7 M5X12 4.3 34 44 774 1180 200
        SC20UU 21 27 54 41 35 11 40 7 M6X12 5.2 40 50 882 1370 255
        SC25UU 26 38 76 51.5 42 12 54 11 M8X18 7 50 67 980 1570 600
        SC30UU 30 39 78 59.5 49 15 58 10 M8X18 7 58 72 1574 2740 735
        SC35UU 34 45 90 68 54 18 70 10 M8X18 7 60 80 1670 3140 1100
        SC40UU 40 51 102 7862 62 20 80 11 M10X25 8.7 60 90 2160 4020 1590
        SC50UU 52 61 U2 102 80 25 100 11 M10X25 8.7 80 110 3820 7940 3340

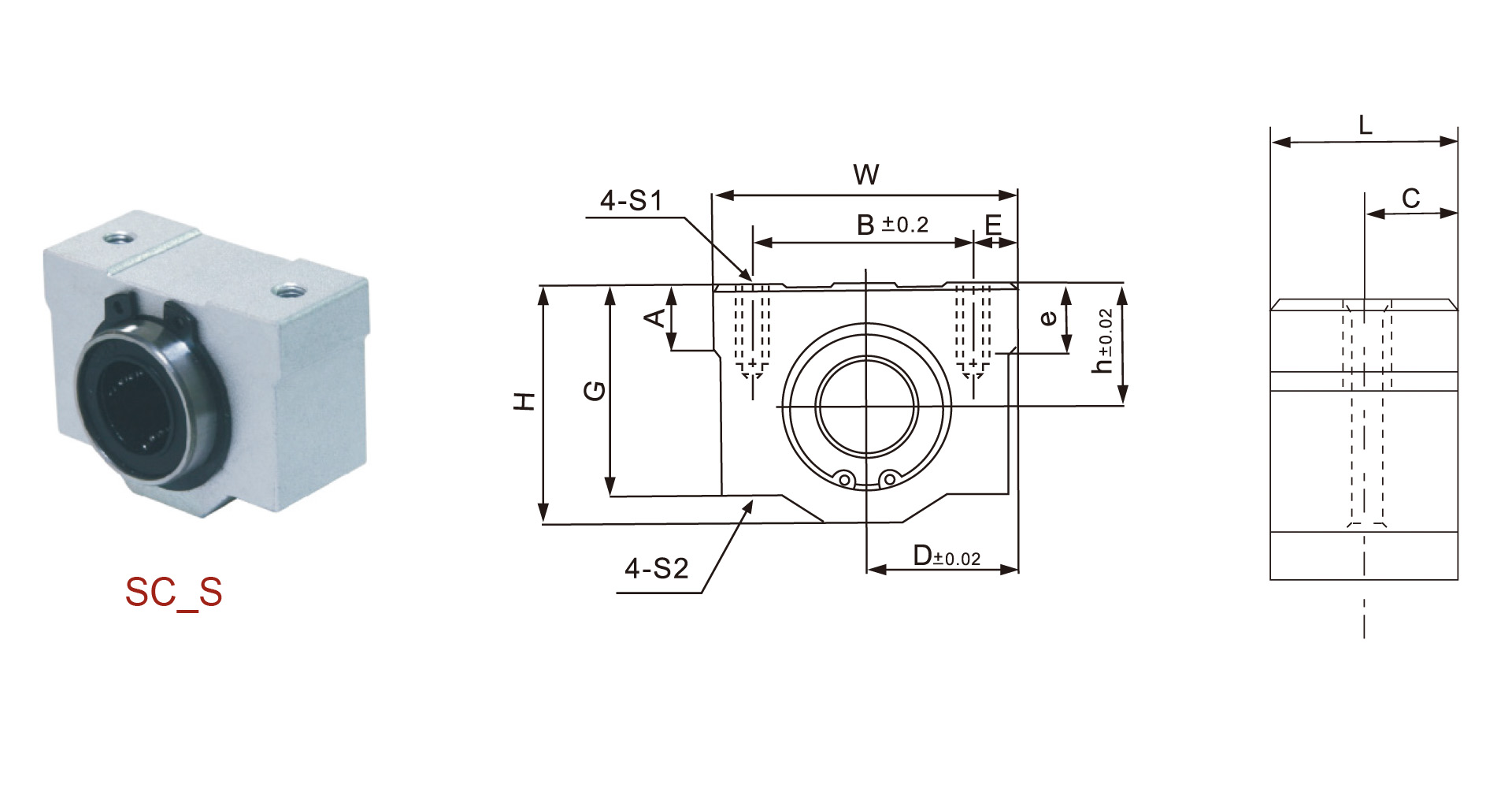

        Data Sheet of Linear Bearings SC_S Series

        Part No. Main Dimensions (mm) Basic Load Rating CN Basic Load Rating CoN Weight (g)
        h D W H G A B E Slxe S2 c L
        SC8SUU 11 17 34 22 18 6 24 5 M4X8 3.4 7.7 15.4 274 392 27
        SC10SUU 13 20 40 26 21 8 28 6 M5X12 4.3 9.95 19.9 372 549 53
        SC12SUU 15 21 42 28 24 8 30.5 5.75 M5X12 4.3 10.45 20.9 510 784 60
        SC13SUU 15 22 44 30 24.5 8 33 5.5 M5X12 4.3 10.45 20.9 510 784 64
        SC16SUU 19 25 50 38.5 32.5 9 36 7 M5X12 4.3 12 24 774 1180 110
        SC20SUU 21 27 54 41 35 11 40 7 M6X12 5.2 14 28 882 1370 144
        SC25SUU 26 38 76 51.5 42 12 54 11 M8X18 7 18.9 37.8 980 1570 340
        SC30SUU 30 39 78 59.5 49 15 58 10 M8X18 7 20.65 41.3 1574 2740 424
        SC35SUU 34 45 90 68 54 18 70 10 M8X18 7 22.65 45.3 1670 3140 626
        SC40SUU 40 51 102 78 62 20 80 11 M10X25 8.7 28.15 56.3 2160 4020 1000
        SC50SUU 52 61 122 102 80 25 100 11 M10X25 8.7 34.4 68.8 3820 7940 2100

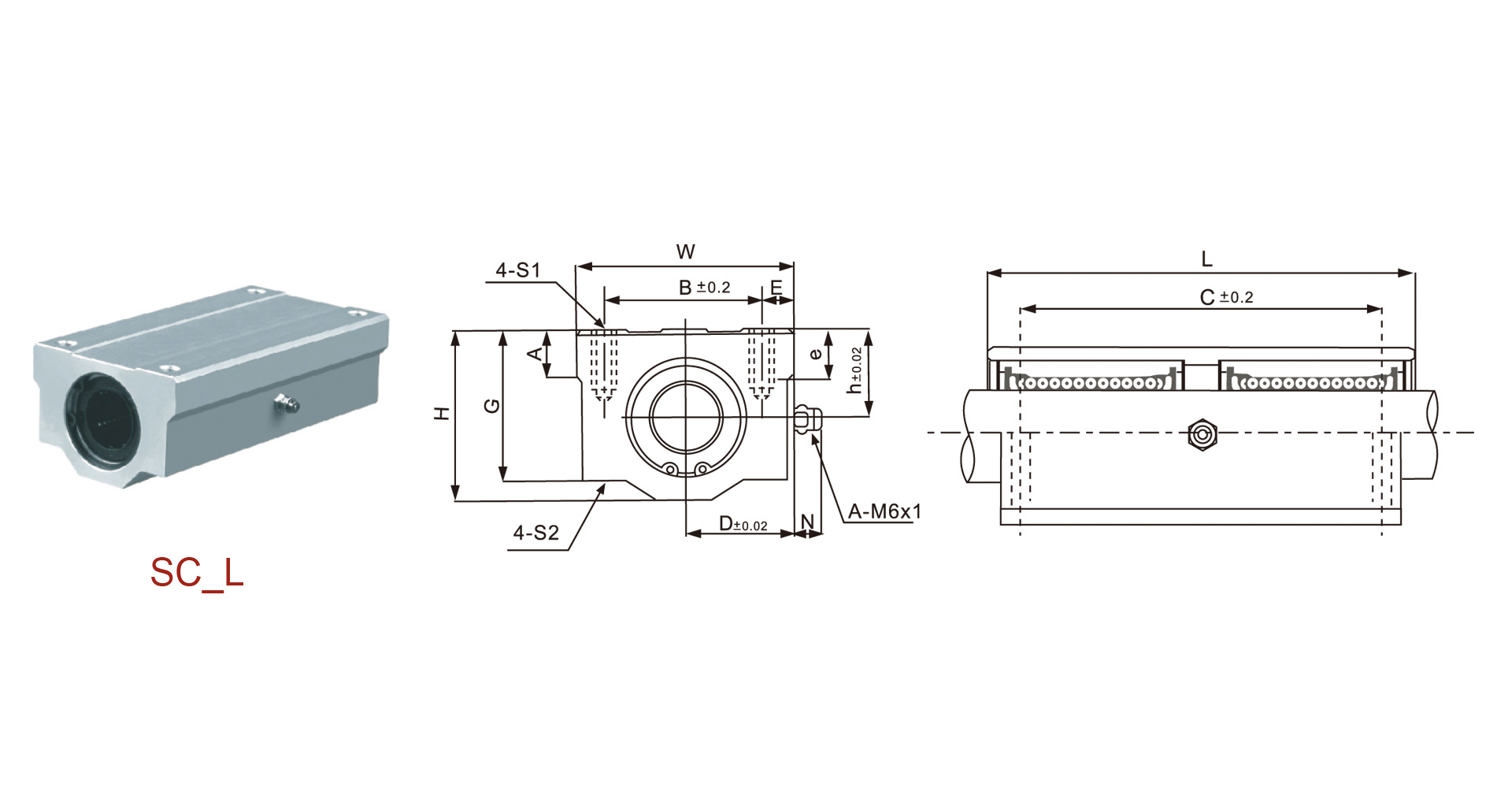

        Data Sheet of Linear Bearings SC_L Series

        Part No. Main Dimensions (mm) Basic Load Rating CN Basic Load Rating CoN Weight (g)
        h D W H G N A B E Slxe S2 C L
        SC8LUU 11 17 34 22 18 7 6 24 5 M4x8 3.4 42 58 431 784 102
        SC10LUU 13 20 40 26 21 7 8 28 6 M5X12 4.3 46 68 588 1100 180
        SC12LUU 15 21 42 28 24 6.5 8 30.5 5.75 M5X12 4.3 50 70 813 1570 250
        SC13LUU 15 22 44 30 24.5 6.5 8 33 5.5 M5X12 4.3 50 75 813 1570 240
        SC16LUU 19 25 50 38.5 32.5 6 9 36 7 M5X12 4.3 60 85 1230 2350 400
        SC20LUU 21 27 54 41 35 7 11 40 7 M6X12 5.2 70 96 1410 2740 570
        SC25LUU 26 38 76 51.5 42 4 12 54 11 M8X18 7 100 130 1610 3140 1200
        SC3OLUU 30 39 78 59.5 49 5 15 58 10 M8X18 7 110 140 2450 5490 1480
        SC35LUU 34 45 90 68 54 5.5 18 70 10 M8X18 7 120 155 2650 6270 2200
        SC40LUU 40 51 102 78 62 5 20 80 11 M10X25 8.7 140 175 3430 8040 3200
        SC5OLUU 52 61 122 102 80 5 25 100 11 M10X25 8.7 160 215 6080 15900 6700
