    M Series-Miniature Type Linear Guideways

    Miniature Type Linear Guideways

    GMW-C/GMW-HLinear Guideways

    M Series

    Characteristic:

    • Precision: C, H, P.
    • Size: 5~15.
    • GCR15 & Stainless steelmaterial available.
    • Strict quality control
    Quote Now

      [email protected]

      Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

      Download

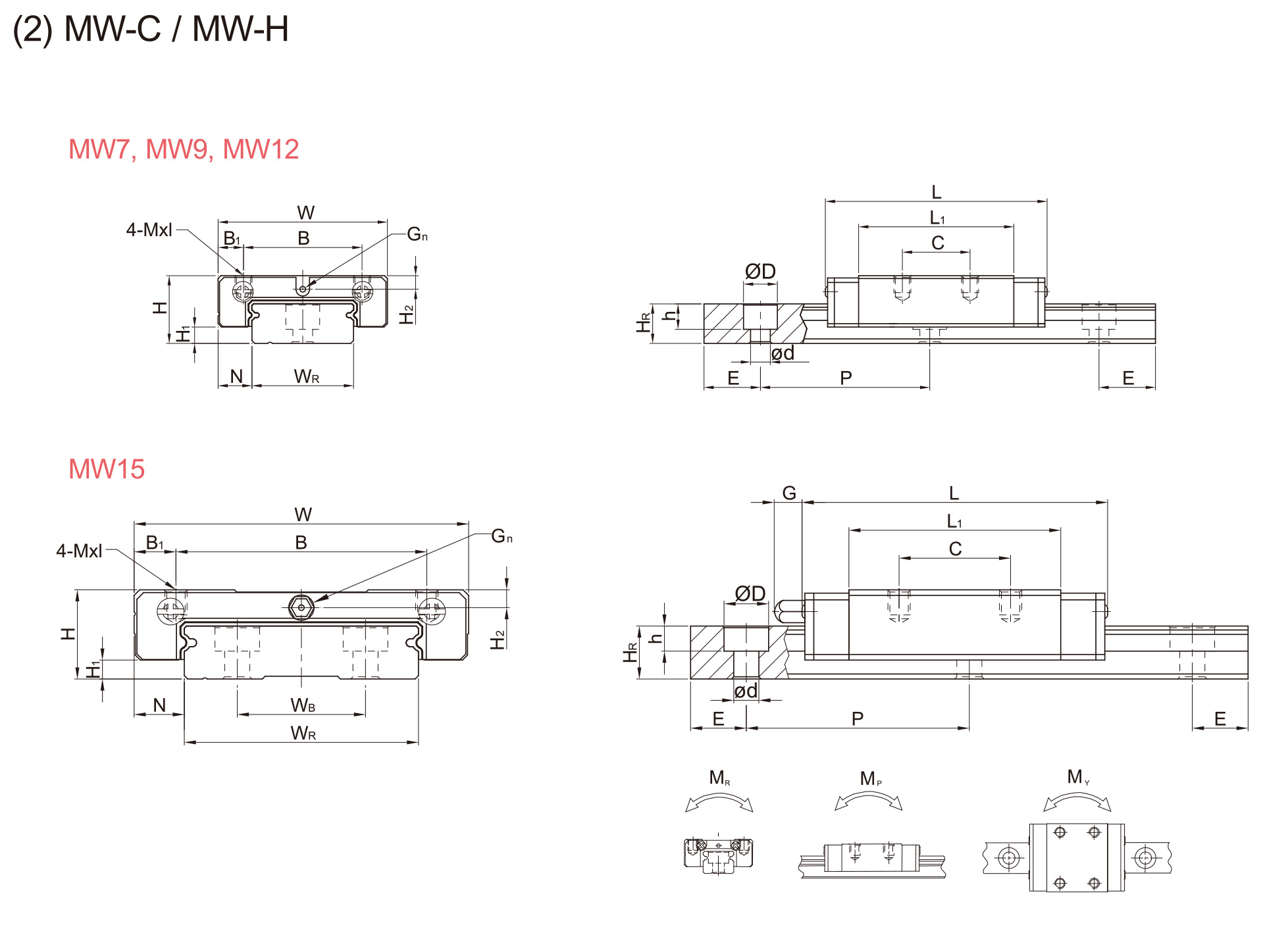

      Model NO.

      Dimensions of
      Assembly(mm)

      Dimensions of
      Block (mm)

      Dimensions of
      Rail (mm)

      Mounting Bolt for Rail

      Basic Dynamic Load Rating

      Basic Static Load Rating

      Static Rated Moment

      Weight

      MR
      kN-m

      MP
      kN-m

      MY
      kN-m

      Block
      kg

      Rail
      kg/m

      H

      H1

      N

      W

      B

      B1

      C

      L1

      L

      G

      Gn

      MxL

      H2

      WR

      WB

      HR

      D

      h

      d

      P

      E

      (mm)

      C(kN)

      C0(kN)

      MW7C

      9

      1.9

      5.5

      25

      19

      3

      10

      21

      31.2

      –

      ø1.2

      M3x3

      1.85

      14

      –

      5.2

      6

      3.2

      3.5

      30

      10

      M3x6

      1.37

      2.06

      15.70

      7.14

      7.14

      0.020

      0.51

      MW7H

      19

      30.8

      41

      1.77

      3.14

      23.45

      15.53

      15.53

      0.029

      MW9C

      12

      2.9

      6

      30

      21

      4.5

      12

      27.5

      39.3

      –

      ø1.2

      M3x3

      2.4

      18

      –

      7

      6

      4.5

      3.5

      30

      10

      M3x8

      2.75

      4.12

      40.12

      18.96

      18.96

      0.040

      0.91

      MW9H

      23

      3.5

      24

      38.5

      50.7

      3.43

      5.89

      54.54

      34.00

      34.00

      0.057

      MW12C

      14

      3.4

      8

      40

      28

      6

      15

      31.3

      46.1

      –

      ø1.2

      M3x3.6

      2.8

      24

      –

      8.5

      8

      4.5

      4.5

      40

      15

      M4x8

      3.92

      5.59

      70.24

      27.80

      27.80

      0.071

      1.49

      MW12H

      28

      45.6

      60.4

      5.10

      8.24

      102.70

      57.37

      57.37

      0.103

      MW15C

      16

      3.4

      9

      60

      45

      7.5

      20

      38

      54.8

      5.2

      M3

      M4x4.2

      3.2

      42

      23

      9.5

      8

      4.5

      4.5

      40

      15

      M4x10

      6.77

      9.22

      199.34

      56.66

      56.66

      0.143

      2.86

      MW15H

      35

      57

      73.8

      8.93

      13.38

      299.01

      122.60

      122.60

      0.215
       Note: 1. 1kgf = 9.81N
