KBE Series – Linear Bearing

Question 1

Q: What professional certificates do you have？

Answer

A: We pay great attention with the quality of our products and we have many quality certificates: ISO9001, ISO14001, CE European Union certification certificate, ROHS certificate etc.

Question 2

Q: Can I get a sample?

Answer

A: Yes, sample is available. If you are interested, you can contact us by e-mail ([email protected]) to get more photos and information.

Question 3

Q: Delivery Date?

Answer

A: Normal order delivery of linear motion products is generally controlled within 1-2 months.
Normal order delivery for linear unit and higher precision products is generally controlled within 7-15 working days.

Question 4

Q: What is your shipping optional?

Answer

A: Our cooperating transportation companies include DHL, TNT, UPS, etc. Sea transportation, air transportation and express delivery are all available. If you have a specific carrier, please let us know when you place the order.

Question 5

Q: Whether to accept customized products?

Answer

A: You can contact us by e-mail ([email protected] ) and we will recommend the most suitable project according to your requirements.

Question 6

Q: What is your payment methods?

Answer

A: T/T in advance.

Question 7

Q: Which countries do you have distributor?

Answer

A: SHAC agent in Asia: Singapore, Japan, India
SHAC agent in Europe: Hungary, Turkey, Israel
SHAC agent in South America: Brazil

Question 8

Q: Where is your main market?

Answer

A: SHAC do quite well in Europe, Asia and South America, also China is a potential market for us. Now SHAC’s distributors have covered more than 32 country and regions.

Question 9

Q: Can I be a SHAC agent?

Answer

A: We are really looking forward to having you as a solid partner of SHAC. Please contact us by e-mail ([email protected] ) , we can start talk and get to know more about each other.

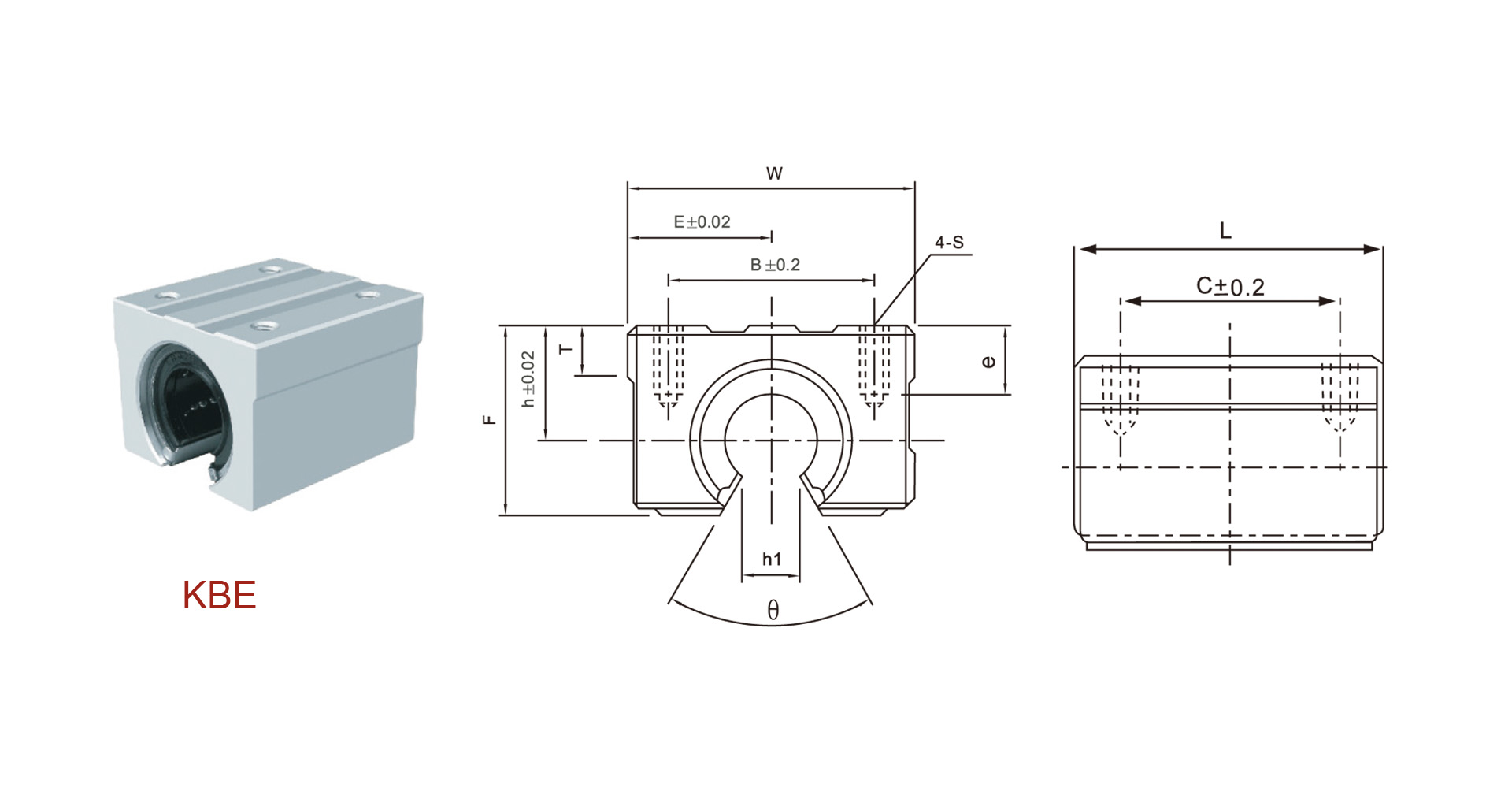

Part No.		Main Dimensions (mm)											Basic Load Rating CN	Basic Load Rating CoN	Weight (g)
Seal Type	Shaft Diameter	h	D	W	L	H	T	h1	θ	B	C	Sxe	Basic Load Rating CN	Basic Load Rating CoN	Weight (g)
KBE16UU	16	20	22.5	45	45	33	9	10	80°	32	30	M5x12	774	1180	150
KBE20UU	20	23	24	48	50	39	11	10	60°	35	35	M6x12	882	1370	200
KBE25UU	25	27	30	60	65	47	14	11.5	60°	40	40	M6x12	980	1570	450
KBE30UU	30	33	35	70	70	56	15	14	60°	50	50	M8x18	1570	2740	630
KBE40UU	40	42	45	90	90	72	20	19	60°	65	65	M10x20	2160	4020	1330
KBE50UU	50	53	60	120	110	92	25	23	60°	94	80	M10x20	3820	7940	3000
